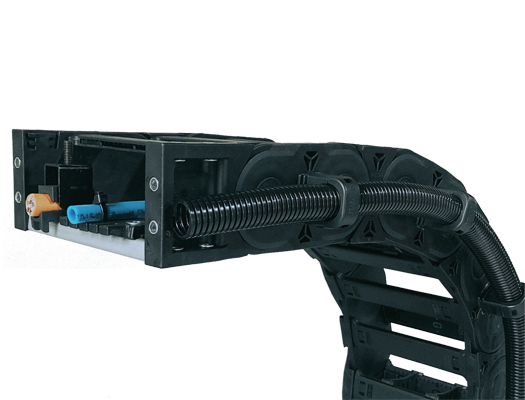

GeMotion Series

Stability, high load and long travel

The GeMotion series is engineered for demanding applications requiring high load capacity and long travel distances. It delivers outstanding performance and an extended service life, even under the most challenging operating conditions.

Mortise and tenon design for high lateral stability and torsion resistance
Inner/outer-link design for straight run
Noise-reducing brake and optional noise dampers
Smooth, cable-fiendly inner surface
Many modular options and accessories available

Typical industries and applications
Machine tools | Laser cutting | Material handlling | Truss robot | Ground rail | Casting equipment | Construction machinery | Crane

G34 Series

Open | Crossbars every link

Inner height hi ：34 mm
Inner widths Bi ： 50 - 400 mm
Bending radii R ： 063 - 300 mm
Pitch P ：56 mm

+ VIEW MORE

G44 Series

Open | Crossbars every link

Inner height hi ：44 mm
Inner widths Bi ： 50 - 400 mm
Bending radii R ： 075 - 350 mm
Pitch P ：67 mm

+ VIEW MORE

G60 Series

Open | Crossbars every link

Inner height hi ：60 mm
Inner widths Bi ： 75 - 500 mm
Bending radii R ： 135 - 500 mm
Pitch P ：91 mm

+ VIEW MORE

G80 Series

Open | Crossbars every link

Inner height hi ：80 mm
Inner widths Bi ： 75 - 500 mm
Bending radii R ： 150 - 600 mm
Pitch P ：111 mm

+ VIEW MORE

GS80 Series

Open | Crossbars every link

Inner height hi ：80 mm
Inner widths Bi ： 75 - 500 mm
Bending radii R ： 150 - 600 mm
Pitch P ：91 mm

+ VIEW MORE

G112 Series

Open | Crossbars every link

Inner height hi ：112 mm
Inner widths Bi ： 75-500 mm
Bending radii R ： 200-1000 mm
Pitch P ：143 mm

+ VIEW MORE

G34H Series

Open | Crossbars every 2nd link

Inner height hi ：34 mm
Inner widths Bi ： 50 - 400 mm
Bending radii R ： 063 - 300 mm
Pitch P ：56 mm

+ VIEW MORE

G44H Series

Open | Crossbars every 2nd link

Inner height hi ：44 mm
Inner widths Bi ： 50 - 400 mm
Bending radii R ： 075 - 350 mm
Pitch P ：67 mm

+ VIEW MORE

G60H Series

Open | Crossbars every 2nd link

Inner height hi ：60 mm
Inner widths Bi ： 75 - 500 mm
Bending radii R ： 135 - 500 mm
Pitch P ：91 mm

+ VIEW MORE

G80H Series

Open | Crossbars every 2nd link

Inner height hi ：80 mm
Inner widths Bi ： 75 - 500 mm
Bending radii R ： 150 - 600 mm
Pitch P ：111 mm

+ VIEW MORE

GS80H Series

Open | Crossbars every 2nd link

Inner height hi ：80 mm
Inner widths Bi ： 75 - 500 mm
Bending radii R ： 150 - 600 mm
Pitch P ：91 mm

+ VIEW MORE

G34T Series

Closed | Openable along outer radius

Inner height hi ：34 mm
Inner widths Bi ： 50 - 300 mm
Bending radii R ： 125 - 300 mm
Pitch P ：56 mm

+ VIEW MORE
