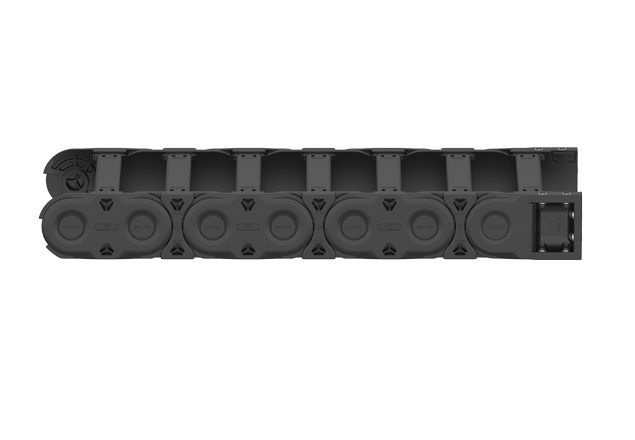

G44 Series| GeMotion Cable chain series

Part No.	Bi[mm]	Ba[mm]	R[mm]	Weight [kg/m]
G44.050.R	50	76	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 2.08
G44.075.R	75	101	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 2.20
G44.100.R	100	126	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 2.32
G44.125.R	125	151	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 2.44
G44.150.R	150	176	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 2.57
G44.175.R	175	201	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 2.69
G44.200.R	200	226	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 2.81
G44.225.R	225	251	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 2.93
G44.250.R	250	276	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 3.05
G44.275.R	275	301	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 3.17
G44.300.R	300	326	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 3.30
G44.350.R	350	376	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 3.54
G44.400.R	400	426	075 \| 100 \| 125 \| 150 \| 175 \| 200 \| 225 \| 250 \| 300 \| 350	≈ 3.78

MFB mounting brackets | Open

Pivoting/Locking

Bi [mm]	Part No. MFB pivoting	Part No. MFB locking	A [mm]	B [mm]
50	G440.050.*.12	G441.050.*.12	66	80
75	G440.075.*.12	G441.075.*.12	91	105
100	G440.100.*.12	G441.100.*.12	116	130
125	G440.125.*.12	G441.125.*.12	141	155
150	G440.150.*.12	G441.150.*.12	166	180
175	G440.175.*.12	G441.175.*.12	191	205
200	G440.200.*.12	G441.200.*.12	216	230
225	G440.225..12	G441.225..12	241	255
250	G440.250.*.12	G441.250.*.12	266	280
275	G440.275..12	G441.275..12	291	305
300	G440.300..12	G441.300..12	316	330
350	G440.350..12	G441.350..12	366	380
400	G440.400..12	G441.400..12	416	430

■ Recommended for unsupported, vertical hanging and standing applications

■ Can be fixed from the bottom and top positions

■ Optional integrated C-rails for installing cable clamps and tiewrap plates

For the complete Part NO. of MFB mounting brackets, please specify index 1 or 2 into：

1 = Links for odd

2 = Links for even

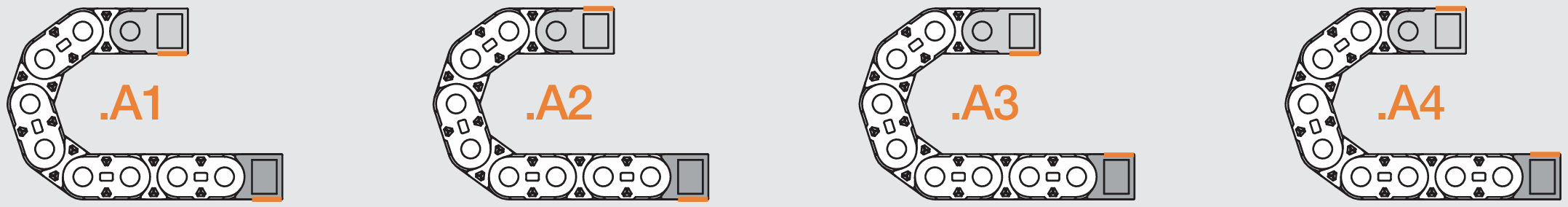

To indicate the installation position, please add index A1-A4 To complete the mounting brackets code：

Default installation position：A1

Unsupported applications | Short travels

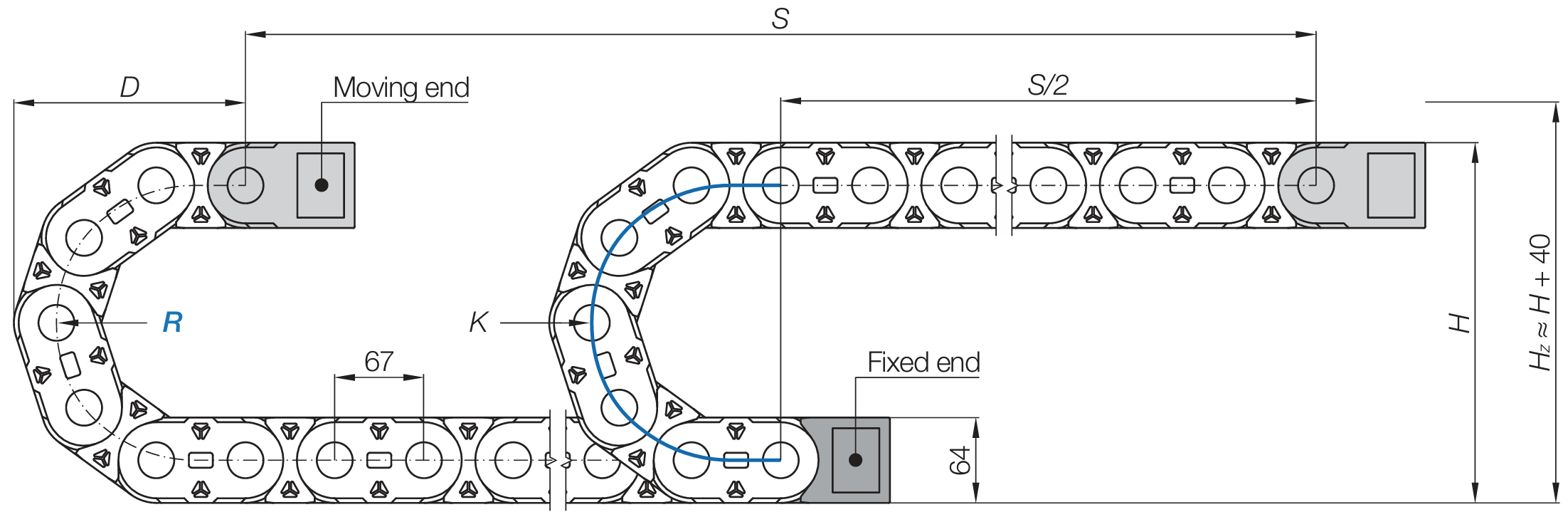

Cable chain length LK = S/2+K

R [mm]	H [mm]	D [mm]	K [mm]
075	214	208	370
100	264	233	450
125	314	258	530
150	364	283	610
175	414	308	685
200	464	333	765
225	514	358	845
250	564	383	920
300	664	433	1080
350	764	483	1235

Gliding applications | Long travels

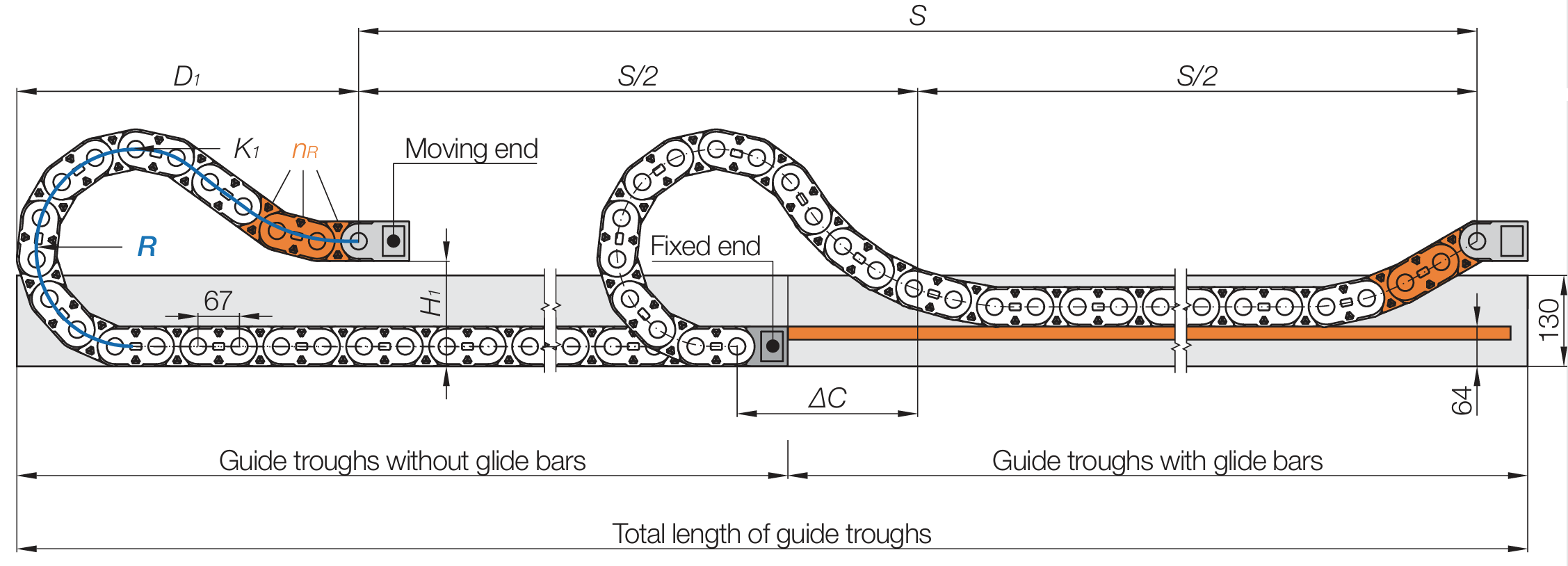

Cable chain length LK = S/2+K1

R [mm]	H₁ [mm]	D₁ [mm]	K₁ [mm]	ΔC [mm]	n_R [1]
075	150	208	370	—	—
100	200	233	450	—	—
125	192	400	603	170	2
150	192	560	871	305	2
175	192	710	1072	440	2
200	192	760	1206	450	3
225	192	850	1340	520	3
250	192	1010	1541	650	3
300	192	1140	1876	730	4
350	192	1450	2278	990	4

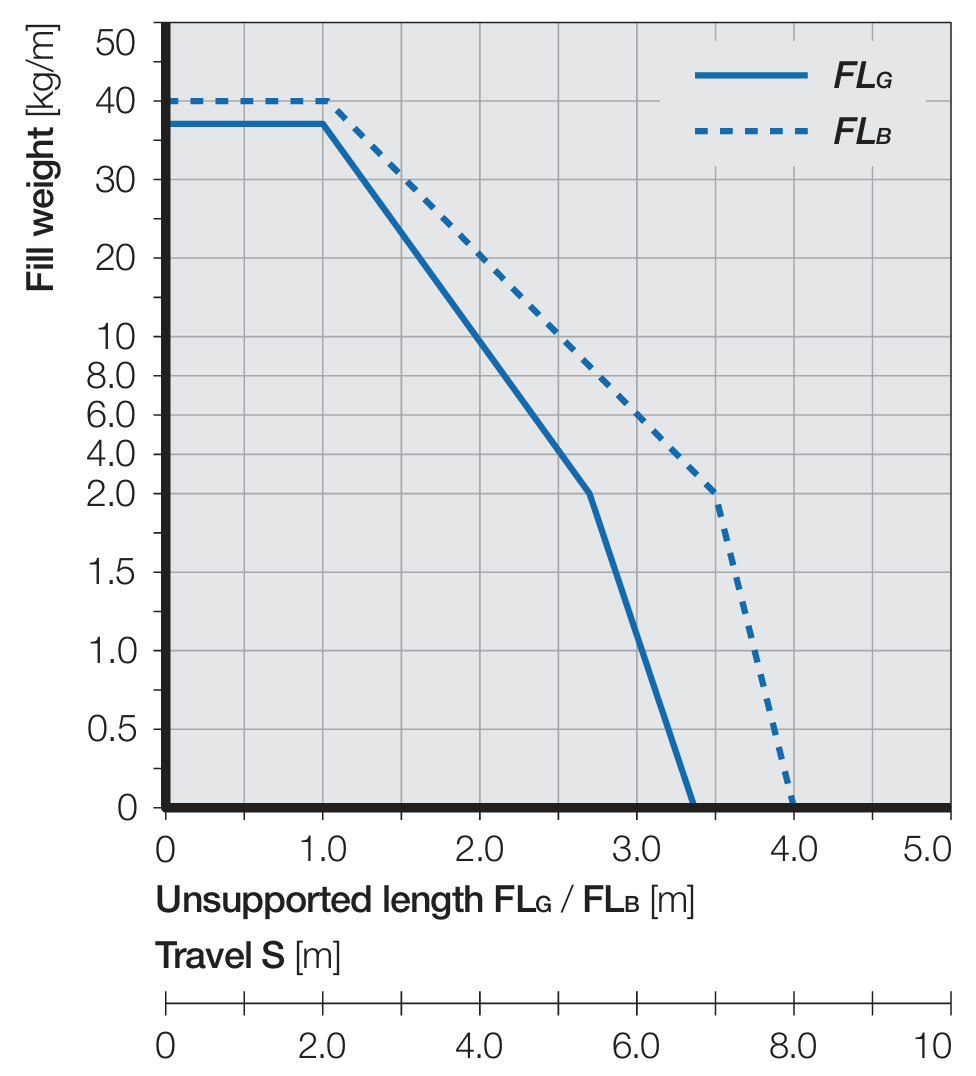

Unsupported length	≤ 4.0 m
Gliding length	≤ 250 m
Vertical hanging	≤ 100 m
Vertical standing	≤ 6.0 m
Side-mounted unsupported	≤ 2.0 m
Speed/Acceleration FLG	≤ 10 [m/s] / 50 [m/s² ]
Speed/Acceleration FLB	≤ 3 [m/s] / 6 [m/s² ]
Gliding speed /Acceleration	≤ 5 [m/s] / 30 [m/s² ]
