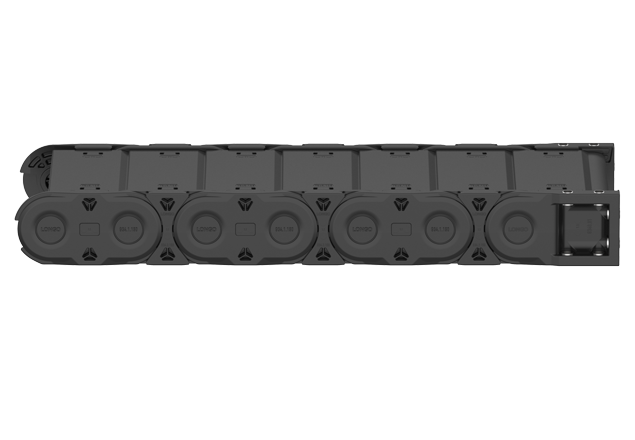

G34T Series

GeMotion Cable chain series

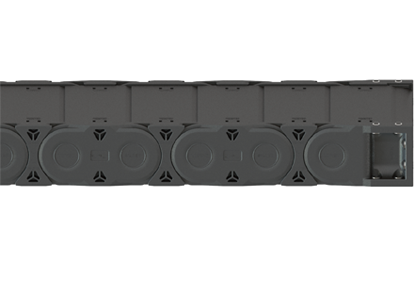

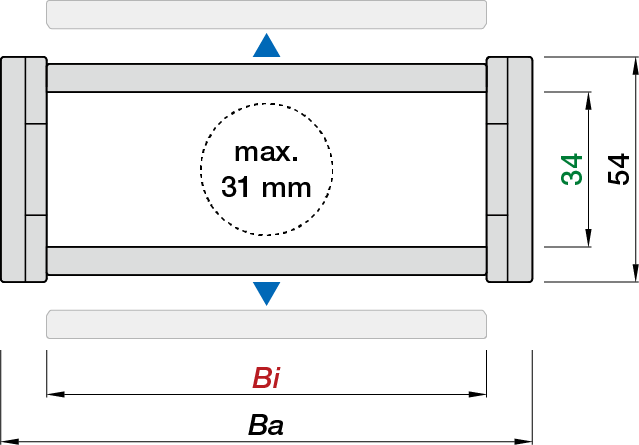

PARAMETER

Inner height hi ：34 mm

Inner widths Bi ： 50 - 300 mm

Bending radii R ： 125 - 300 mm

Pitch P ：56 mm

CONTACT US

Email :clairehui@longo-tech.com

Tel : +86-18602248947

WhatsApp : +86-18602248947

Part No.

Bi[mm]

Ba[mm]

R[mm]

Weight

[kg/m]
G34T.050.R 50 72 125 | 150 | 175 | 200 | 225 | 250 | 300 ≈ 1.80
G34T.075.R 75 97 125 | 150 | 175 | 200 | 225 | 250 | 300 ≈ 2.03
G34T.100.R 100 122 125 | 150 | 175 | 200 | 225 | 250 | 300 ≈ 2.26
G34T.125.R 125 147 125 | 150 | 175 | 200 | 225 | 250 | 300 ≈ 2.48
G34T.150.R 150 172 125 | 150 | 175 | 200 | 225 | 250 | 300 ≈ 2.71
G34T.175.R 175 197 125 | 150 | 175 | 200 | 225 | 250 | 300 ≈ 2.93
G34T.200.R 200 222 125 | 150 | 175 | 200 | 225 | 250 | 300 ≈ 3.15
G34T.250.R 250 272 125 | 150 | 175 | 200 | 225 | 250 | 300 ≈ 3.61
G34T.300.R 300 322 125 | 150 | 175 | 200 | 225 | 250 | 300 ≈ 4.06

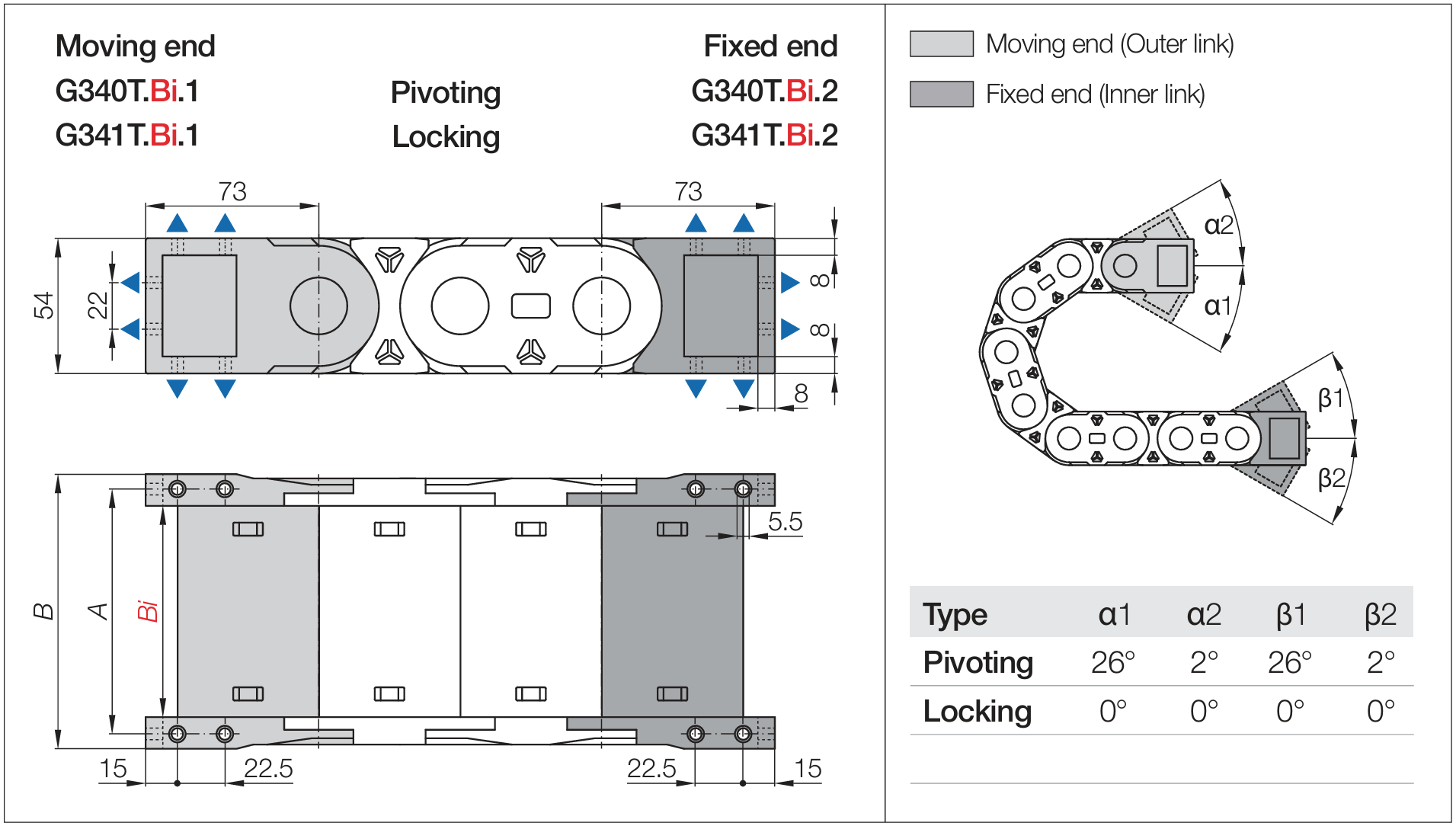

MFB mounting brackets | Closed

Pivoting/Locking

Bi[mm] Part No.

MFB pivoting

 Part No.

MFB locking

 A[mm] B[mm]
50 G340T.050.*.12 G341T.050.*.12 64 76
75 G340T.075.*.12 G341T.075.*.12 89 101
100 G340T.100.*.12 G341T.100.*.12 114 126
125 G340T.125.*.12* G341T.125.*.12* 139 151
150 G340T.150.*.12* G341T.150.*.12* 164 176
175 G340T.175.*.12* G341T.175.*.12* 189 201
200 G340T.200.*.12* G341T.200.*.12* 214 226
250 G340T.250.*.12* G341T.250.*.12* 264 276
300 G340T.300.*.12* G341T.300.*.12* 314 326

■ Recommended for unsupported, vertical hanging and standing applications

■ Can be fixed from the bottom and top positions

■ Optional integrated C-rails for installing cable clamps and tiewrap plates

For the complete Part NO. of MFB mounting brackets, please specify index 1 or 2 into：

1 = Links for odd

2 = Links for even

Unsupported applications | Short travels

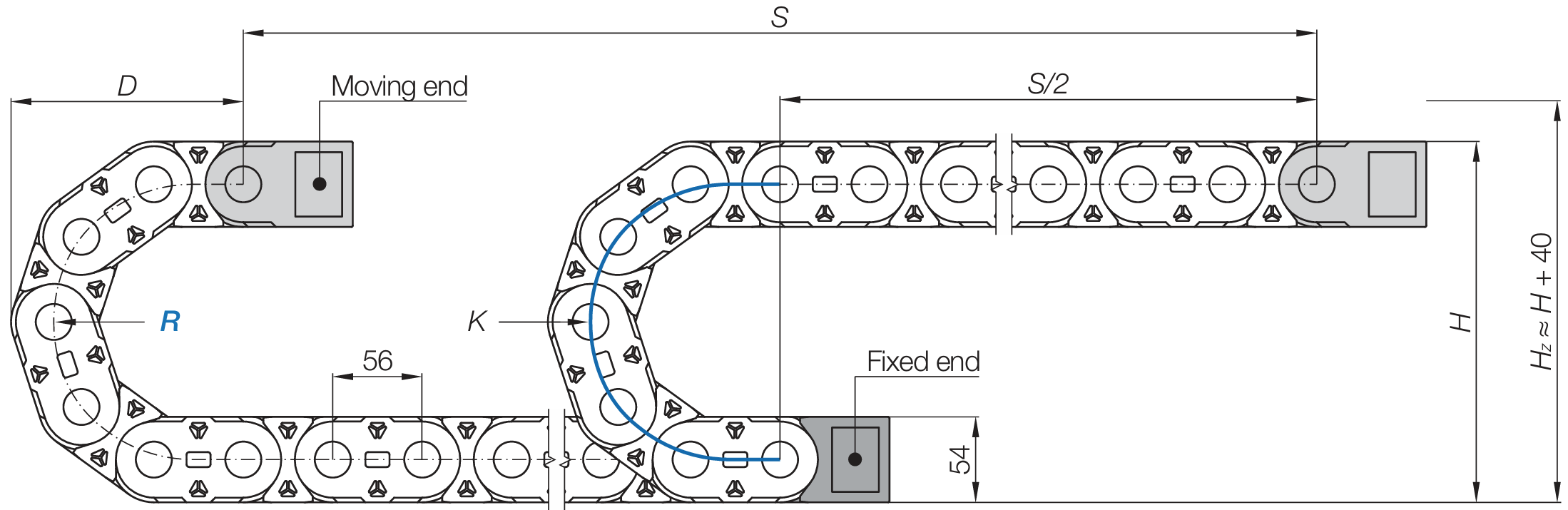

Cable chain length LK = S/2+K

R[mm]

H[mm]

D[mm]

K[mm]
125 304 236 505
150 354 236 505
175 404 286 665
200 454 311 745
225 504 336 820
250 554 361 900
300 654 411 1055



Gliding applications | Long travels

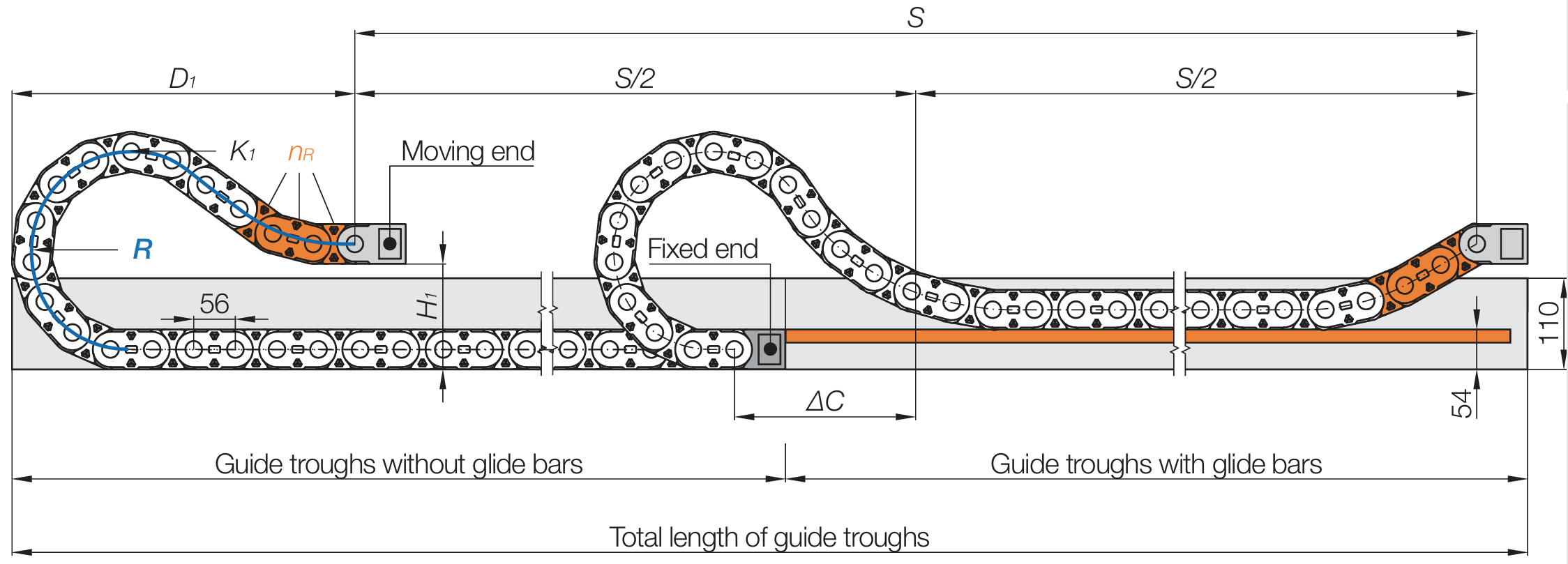

Cable chain length LK = S/2+K1

R[mm]

H1[mm]

D1[mm]

K1[mm]

ΔC[mm]

nR
125 162 465 728 255 2
150 162 510 840 280 3
175 162 600 1008 340 3
200 162 780 1232 490 3
225 162 920 1456 610 3
250 162 950 1568 620 4
300 162 1270 2016 890 4

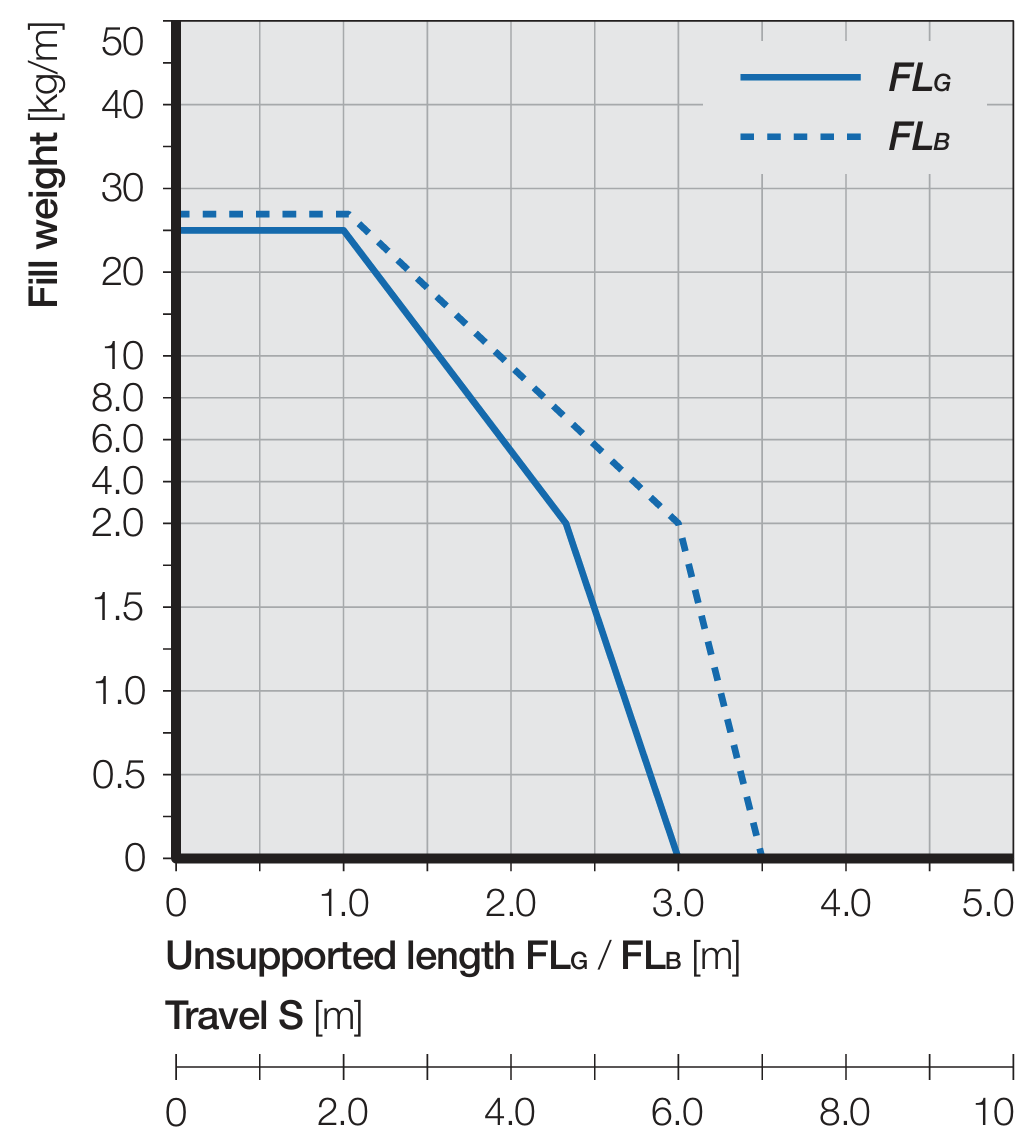

Unsupported length ≤ 3.5 m
Gliding length ≤ 200 m
Vertical hanging ≤ 100 m
Vertical standing ≤ 5.0 m
Side-mounted unsupported ≤ 1.5 m
Speed/Acceleration FLG ≤ 10 [m/s] / 50 [m/s² ]
Speed/Acceleration FLB ≤ 3 [m/s] / 6 [m/s² ]
Gliding speed /Acceleration ≤ 5 [m/s] / 30 [m/s² ]
