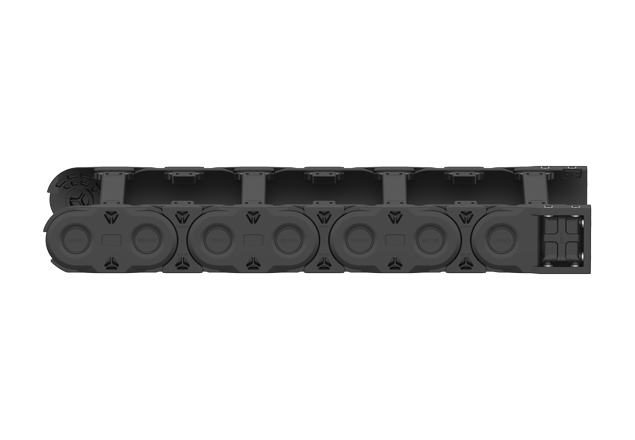

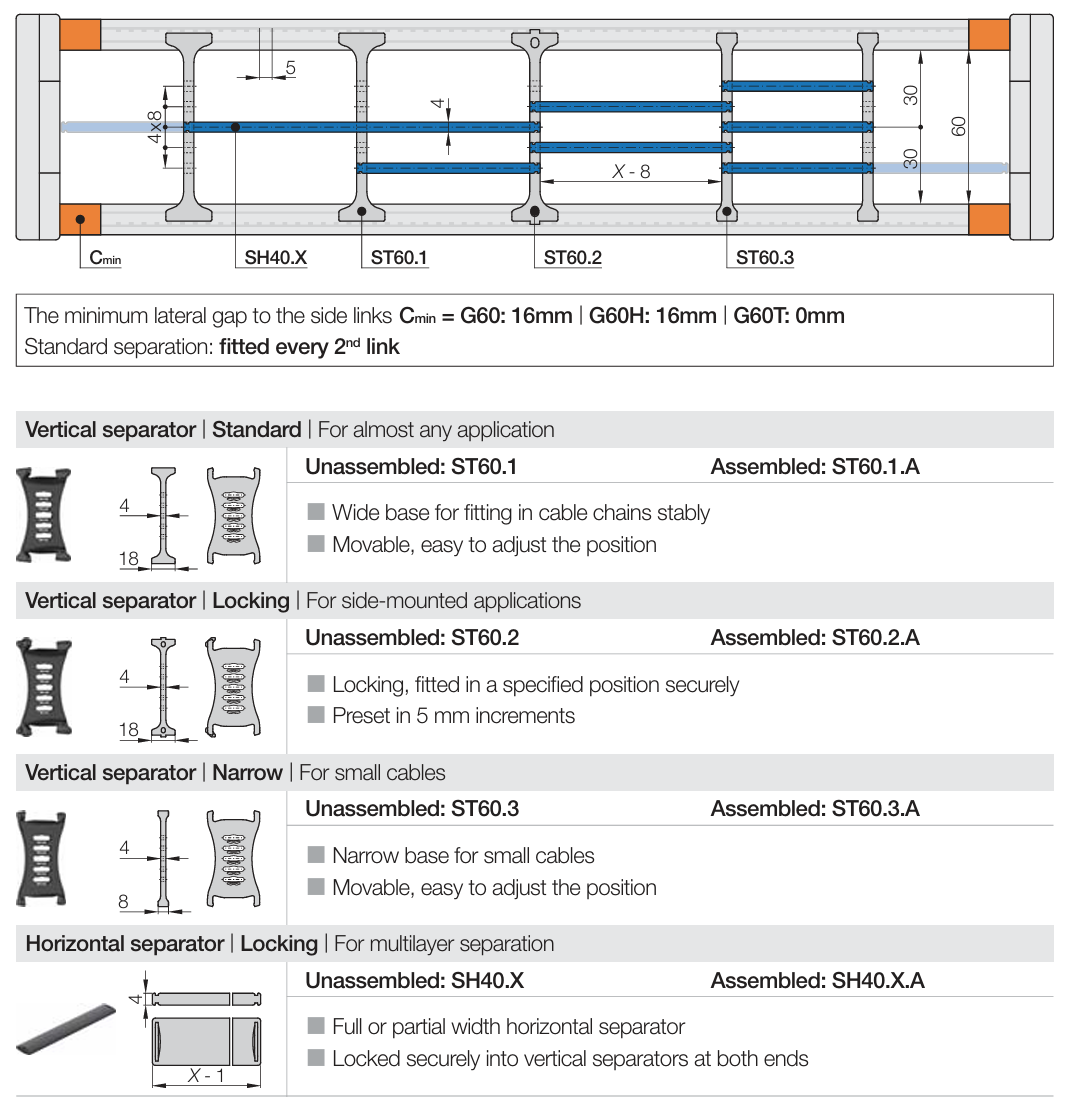

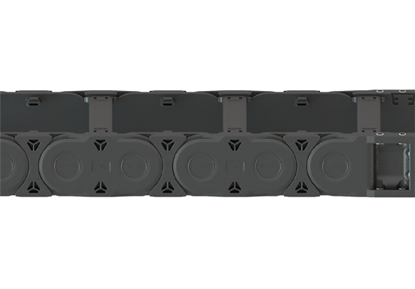

G60H Series| GeMotion Cable chain series

G60H Series

GeMotion Cable chain series

PARAMETER

Inner height hi ：60 mm

Inner widths Bi ： 75 - 500 mm

Bending radii R ： 135 - 500 mm

Pitch P ：91 mm

Email :clairehui@longo-tech.com

Tel : +86-18602248947

WhatsApp : +86-18602248947

Part No.	Bi[mm]	Ba[mm]	R[mm]	Weight[kg/m]
G60H.075.R	75	109	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 3.62
G60H.100.R	100	134	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 3.71
G60H.125.R	125	159	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 3.79
G60H.150.R	150	184	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 3.89
G60H.175.R	175	209	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 3.97
G60H.200.R	200	234	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 4.06
G60H.225.R	225	259	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 4.16
G60H.250.R	250	284	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 4.24
G60H.300.R	300	334	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 4.43
G60H.350.R	350	384	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 4.60
G60H.400.R	400	434	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 4.78
G60H.450.R	450	484	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 4.95
G60H.500.R	500	534	135 \| 150 \| 175 \| 200 \| 250 \| 300 \| 350 \| 400 \| 450 \| 500	≈ 5.13

MFB mounting brackets | Open

Pivoting/Locking

Bi [mm]	Part No. MFB pivoting	Part No. MFB locking	A [mm]	B [mm]
75	G600.075.*.12	G601.075.*.12	98	116
100	G600.100.*.12	G601.100.*.12	123	141
125	G600.125.*.12	G601.125.*.12	148	166
150	G600.150.*.12	G601.150.*.12	173	191
175	G600.175.*.12	G601.175.*.12	198	216
200	G600.200.*.12	G601.200.*.12	223	241
225	G600.225.*.12	G601.225.*.12	248	266
250	G600.250.*.12	G601.250.*.12	273	291
275	G600.275.*.12	G601.275.*.12	298	316
300	G600.300.*.12	G601.300.*.12	323	341
325	G600.325.*.12	G601.325.*.12	348	366
350	G600.350.*.12	G601.350.*.12	373	391
400	G600.400.*.12	G601.400.*.12	423	441
450	G600.450..12	G601.450..12	473	491
500	G600.500..12	G601.500..12	523	541

■ Recommended for unsupported, vertical hanging and standing applications

■ Can be fixed from the bottom and top positions

■ Optional integrated C-rails for installing cable clamps and tiewrap plates

For the complete Part NO. of MFB mounting brackets, please specify index 1 or 2 into：

1 = Links for odd

2 = Links for even

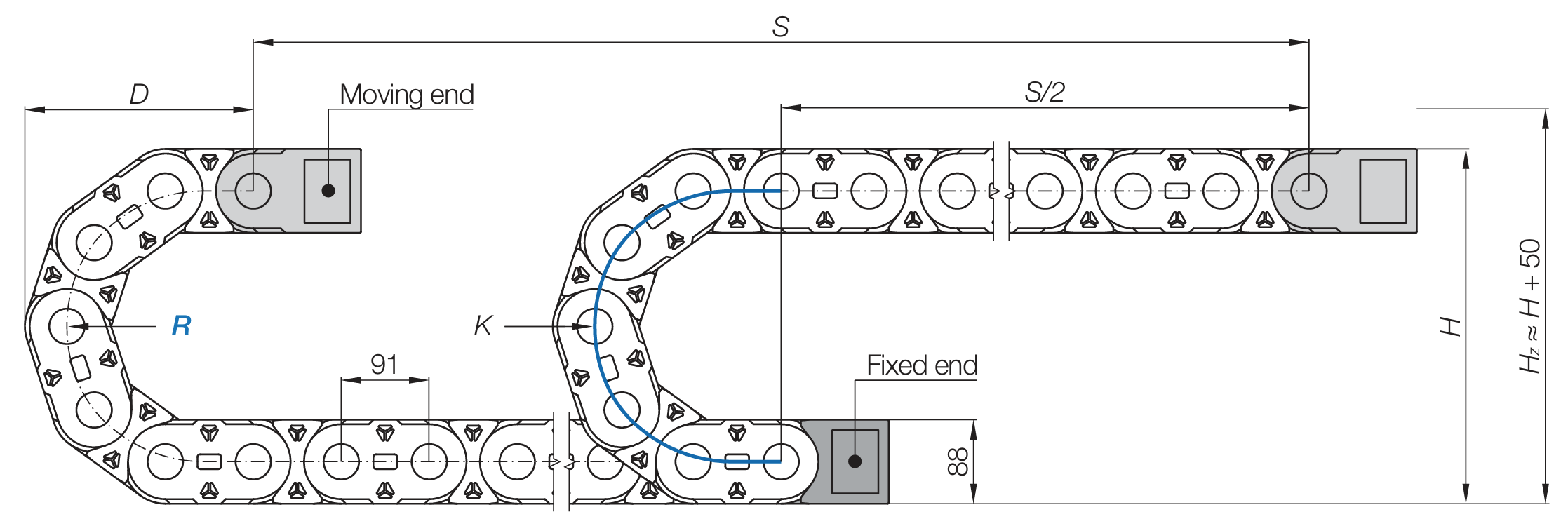

Unsupported applications | Short travels

Cable chain length LK = S/2+K

R[mm]	H[mm]	D[mm]	K[mm]
135	358	316	610
150	388	331	655
175	438	356	735
200	488	381	815
250	588	431	970
300	688	481	1125
350	788	531	1285
400	888	581	1440
450	988	631	1600
500	1088	681	1755

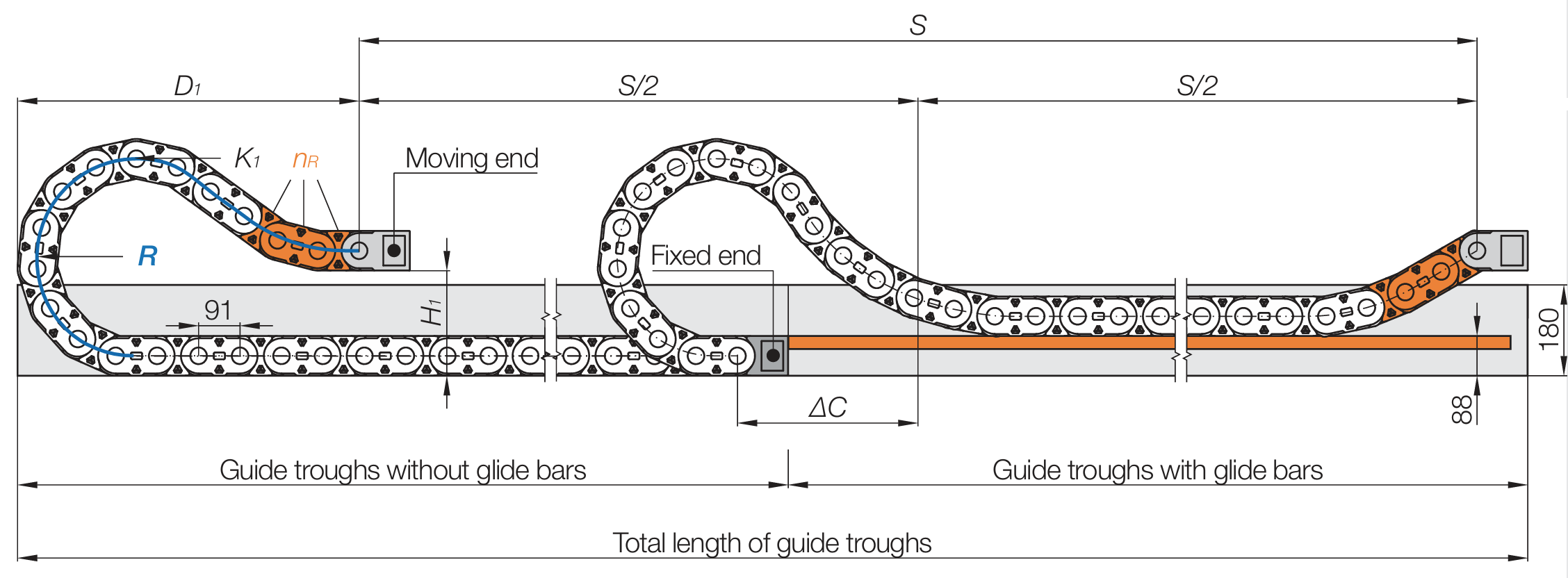

Gliding applications | Long travels

Cable chain length LK = S/2+K1

R[mm]	H₁[mm]	D₁[mm]	K₁[mm]	ΔC[mm]	n_R
135	270	316	610	—	—
150	264	500	819	210	2
175	264	560	910	240	2
200	264	690	1092	335	2
250	264	850	1365	455	3
300	264	1080	1729	630	3
350	264	1390	2184	890	3
400	264	1460	2457	920	4
450	264	1770	2912	1180	4
500	264	2090	3276	1450	4

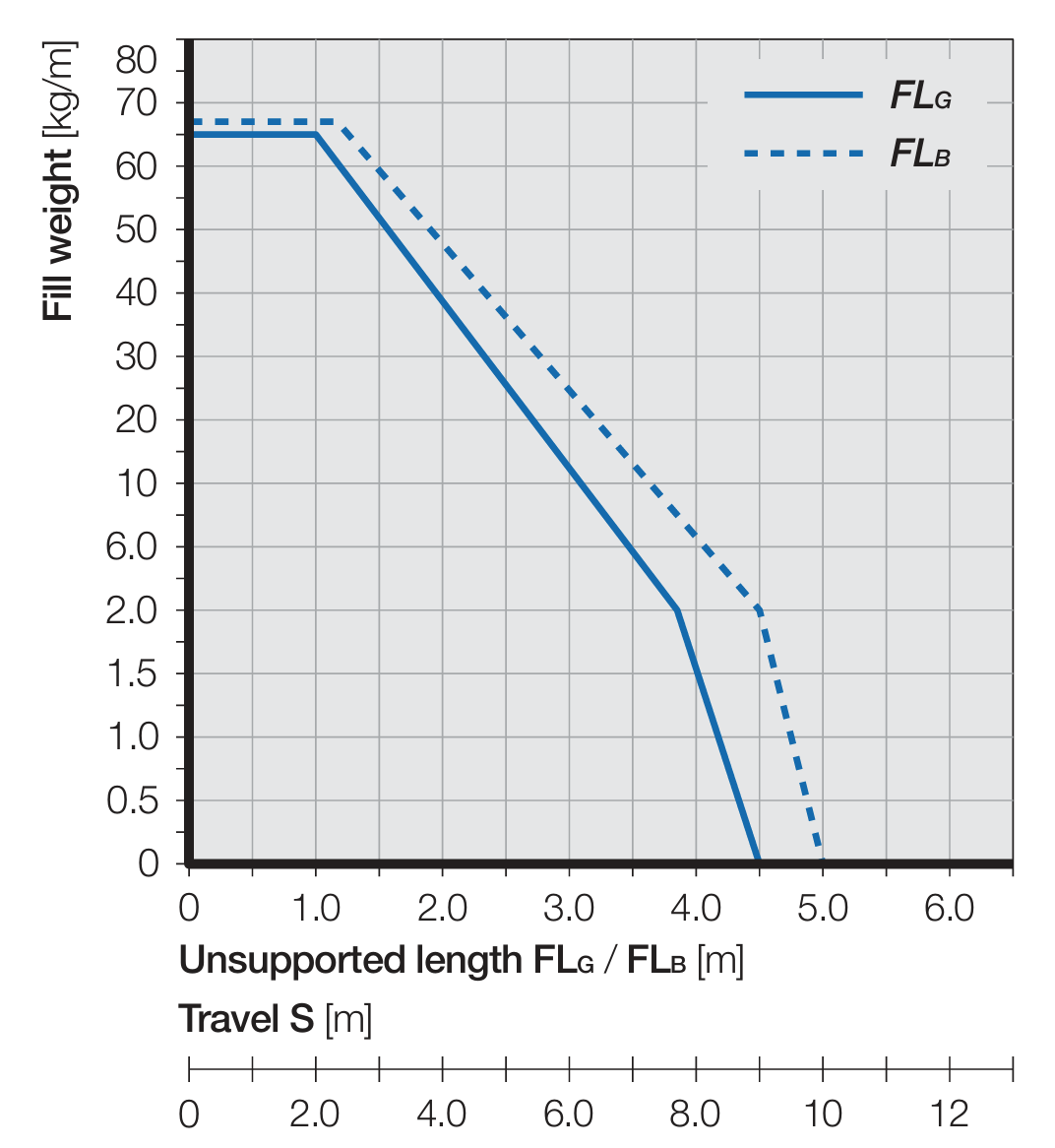

Unsupported length	≤ 5.0 m
Gliding length	≤ 350 m
Vertical hanging	≤ 100 m
Vertical standing	≤ 6.0 m
Side-mounted unsupported	≤ 2.5 m
Speed/Acceleration FLG	≤ 10 [m/s] / 50 [m/s² ]
Speed/Acceleration FLB	≤ 3 [m/s] / 6 [m/s² ]
Gliding speed /Acceleration	≤ 5 [m/s] / 30 [m/s² ]

G60H Series

MFB mounting brackets | Open

Unsupported applications | Short travels

Gliding applications | Long travels
