G112T Series
Closed | Swarf protectio
- Inner height hi ：108 mm
- Inner widths Bi ： 200-400 mm
- Bending radii R ： 250-1000 mm
- Pitch P ：143 mm

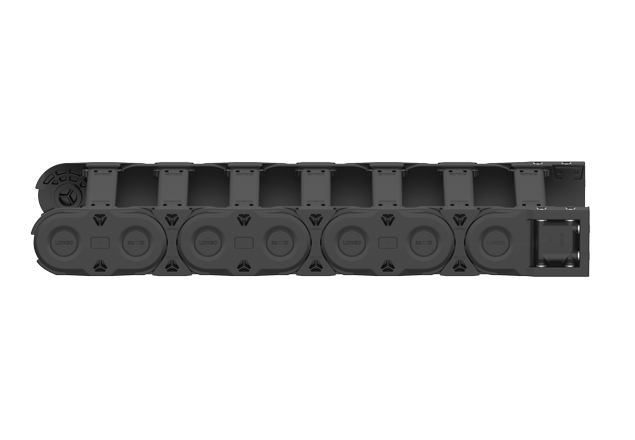

Inner height hi ：34 mm
Inner widths Bi ： 50 - 400 mm
Bending radii R ： 063 - 300 mm
Pitch P ：56 mm
|
Part No. |
Bi[mm] |
Ba[mm] |
R[mm] |
Weight [kg/m] |
| G34.050.R | 50 | 72 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 1.65 |
| G34.075.R | 75 | 97 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 1.79 |
| G34.100.R | 100 | 122 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 1.94 |
| G34.125.R | 125 | 147 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 2.08 |
| G34.150.R | 150 | 172 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 2.24 |
| G34.175.R | 175 | 197 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 2.38 |
| G34.200.R | 200 | 222 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 2.52 |
| G34.225.R | 225 | 247 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 2.67 |
| G34.250.R | 250 | 272 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 2.82 |
| G34.275.R | 275 | 297 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 2.96 |
| G34.300.R | 300 | 322 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 3.11 |
| G34.350.R | 350 | 372 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 3.40 |
| G34.400.R | 400 | 422 | 063 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | ≈ 3.69 |
Pivoting/Locking
| Bi [mm] | Part No.
MFB pivoting |
Part No.
MFB locking |
A [mm] | B [mm] |
| 50 | G340.050.*.12 | G341.050.*.12 | 64 | 76 |
| 75 | G340.075.*.12 | G341.075.*.12 | 89 | 101 |
| 100 | G340.100.*.12 | G341.100.*.12 | 114 | 126 |
| 125 | G340.125.*.12 | G341.125.*.12 | 139 | 151 |
| 150 | G340.150.*.12 | G341.150.*.12 | 164 | 176 |
| 175 | G340.175.*.12 | G341.175.*.12 | 189 | 201 |
| 200 | G340.200.*.12 | G341.200.*.12 | 214 | 226 |
| 225 | G340.225.*.12* | G341.225.*.12* | 239 | 251 |
| 250 | G340.250.*.12 | G341.250.*.12 | 264 | 276 |
| 275 | G340.275.*.12* | G341.275.*.12* | 289 | 301 |
| 300 | G340.300.*.12* | G341.300.*.12* | 314 | 326 |
| 350 | G340.350.*.12* | G341.350.*.12* | 364 | 376 |
| 400 | G340.400.*.12* | G341.400.*.12* | 414 | 426 |
■ Recommended for unsupported, vertical hanging and standing applications
■ Can be fixed from the bottom and top positions
■ Optional integrated C-rails for installing cable clamps and tiewrap plates
For the complete Part NO. of MFB mounting brackets, please specify index 1 or 2 into：
1 = Links for odd
2 = Links for even
To indicate the installation position, please add index A1-A4 To complete the mounting brackets code：
Default installation position：A1
Cable chain length LK = S/2+K
|
R [mm] |
H [mm] |
D [mm] |
K [mm] |
| 063 | 180 | 174 | 310 |
| 075 | 204 | 186 | 350 |
| 100 | 254 | 211 | 430 |
| 125 | 304 | 236 | 505 |
| 150 | 354 | 236 | 505 |
| 175 | 404 | 286 | 665 |
| 200 | 454 | 311 | 745 |
| 225 | 504 | 336 | 820 |
| 250 | 554 | 361 | 900 |
| 300 | 654 | 411 | 1055 |
Cable chain length LK = S/2+K1
|
R [mm] |
H1 [mm] |
D1 [mm] |
K1 [mm] |
ΔC [mm] |
nR [1]
|
| 063 | 126 | 174 | 310 | — | — |
| 075 | 150 | 186 | 350 | — | — |
| 100 | 162 | 325 | 504 | 140 | 2 |
| 125 | 162 | 465 | 728 | 255 | 2 |
| 150 | 162 | 510 | 840 | 280 | 3 |
| 175 | 162 | 600 | 1008 | 340 | 3 |
| 200 | 162 | 780 | 1232 | 490 | 3 |
| 225 | 162 | 920 | 1456 | 610 | 3 |
| 250 | 162 | 950 | 1568 | 620 | 4 |
| 300 | 162 | 1270 | 2016 | 890 | 4 |
| Unsupported length |
≤ 3.5 m |
| Gliding length |
≤ 200 m |
| Vertical hanging |
≤ 100 m |
| Vertical standing |
≤ 5.0 m |
| Side-mounted unsupported | ≤ 1.5 m |
| Speed/Acceleration FLG |
≤ 10 [m/s] / 50 [m/s² ] |
| Speed/Acceleration FLB |
≤ 3 [m/s] / 6 [m/s² ] |
| Gliding speed /Acceleration | ≤ 5 [m/s] / 30 [m/s² ] |
