CableFix | Clamps

Clamps

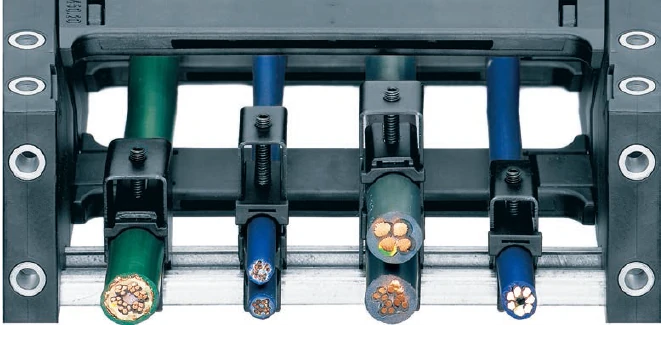

  • For fixing the ends of cables and hoses
  • Installed on the C-rails of MFB mounting brackets
  • For one, two or three cables stacked
  • Tightening torque 1.5Nm
  • High holding force for high dynamic applications
  • Steel or stainless steel for different applications

Type

Part No.

Carbon Steel

Part No.

Stainless Steel

Cable Diameter

Φ[mm]

B

[mm]

H*

[mm]
Single Clamps
CFX12.1 CFX12.1.S 06 - 12 16 54
CFX14.1 CFX14.1.S 12 - 14 18 50
CFX16.1 CFX16.1.S 14 - 16 20 52
CFX18.1 CFX18.1.S 16 - 18 22 54
CFX20.1 CFX20.1.S 18 - 20 24 56
CFX22.1 CFX22.1.S 20 - 22 26 58
CFX26.1 CFX26.1.S 22 - 26 30 67
CFX30.1 CFX30.1.S 26 - 30 34 71
CFX34.1 CFX34.1.S 30 - 34 38 75
CFX38.1 CFX38.1.S 34 - 38 42 79
CFX42.1 CFX42.1.S 38 - 42 46 83
Double Clamps
CFX12.2 CFX12.2.S 06 - 12 16 72
CFX14.2 CFX14.2.S 12 - 14 18 74
CFX16.2 CFX16.2.S 14 - 16 20 78
CFX18.2 CFX18.2.S 16 - 18 22 82
CFX20.2 CFX20.2.S 18 - 20 24 86
CFX22.2 CFX22.2.S 20 - 22 26 90
CFX26.2 CFX26.2.S 22 - 26 30 109
CFX30.2 CFX30.2.S 26 - 30 34 117
CFX34.2 CFX34.2.S 30 - 34 38 125
Triple Clamps
CFX12.3 CFX12.3.S 06 - 12 16 100
CFX14.3 CFX14.3.S 12 - 14 18 96
CFX16.3 CFX16.3.S 14 - 16 20 102
CFX18.3 CFX18.3.S 16 - 18 22 108
CFX20.3 CFX20.3.S 18 - 20 24 114
CFX22.3 CFX22.3.S 20 - 22 26 120

CableFix | Tiewrap plates

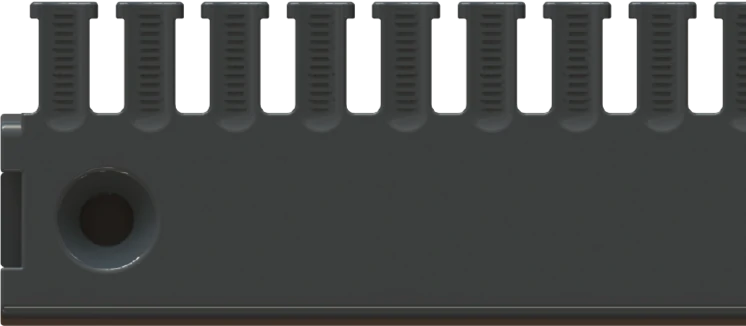

Tiewrap plates
  • For fixing the ends of cables and hoses
  • Easy to assemble
  • Space-saving sturdy and corrosion resistant due to polymer
  • Built-in ribs a secure grip on cables and hoses
  • Simple and economical with medium holding force

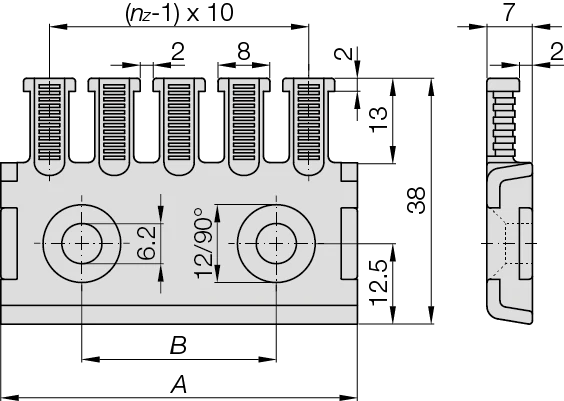

Part No. | Tiewrap plate

Number of teeth nz[1]z

[1]

A

[mm]

B

[mm]
ZA050 5 55 30
ZA075 7 80 55
ZA100 10 105 80
ZA125 12 130 105
ZA150 15 155 130
ZA175 17 180 155
3 installations of tiewrap plates

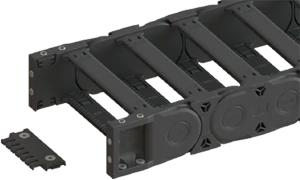

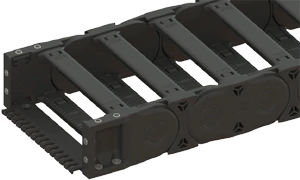

Clipped into MFB without any other accessories

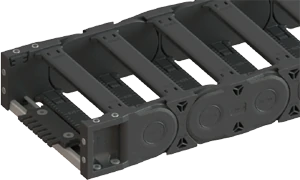

Screwed on the C-rails of MFB

Screwed outside the chains as an individual part

CableFix | C-rails

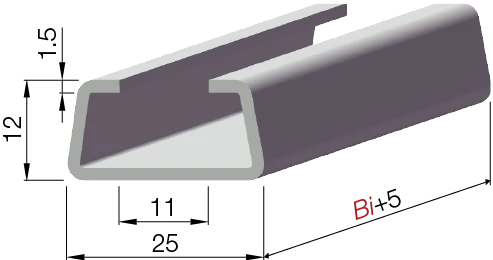

C-rails
  • For installation of clamps and tiewrap plates
  • Can be integrated into MFB
  • Galvanized steel or stainless steel for different applications
  • Length tolerances for C-rails of ±1mm possible
