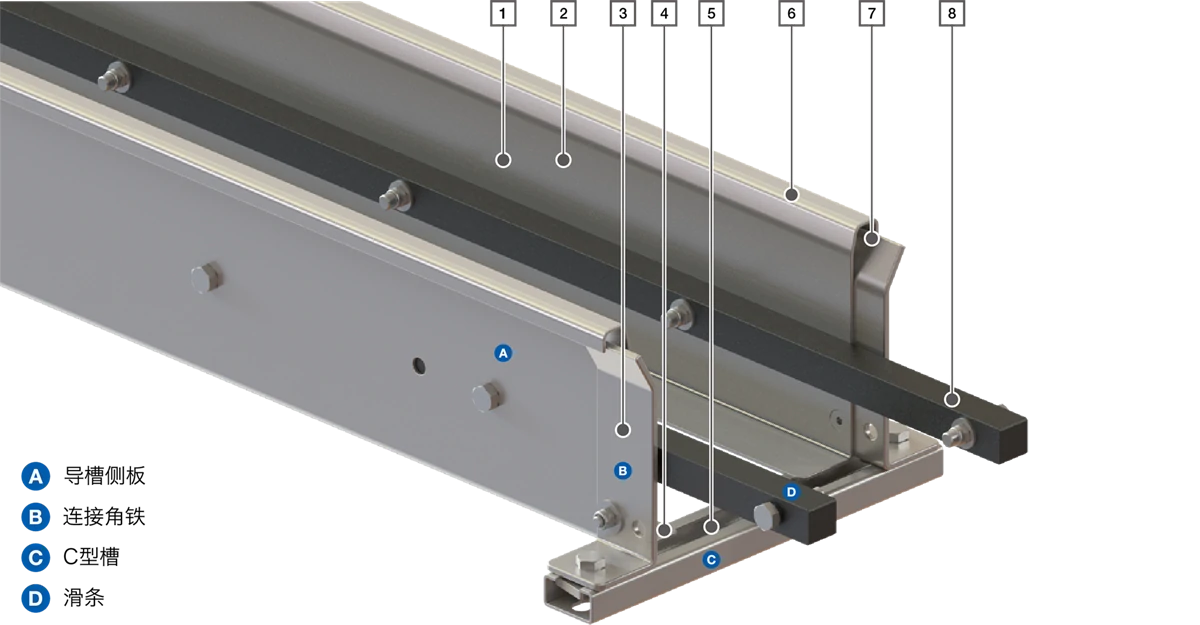

Guide Troughs

- Safe guide, modular assembly -

  • Two-piece design, adjustable to the chain width
  • Galanised steel and stainless steel available
  • Easy and secure installation with no welding
  • Open trough bottom with no dirt accumulation
  • Easy to adjust the installation position with C-rails
  • Save installation space
  • Modular design, with extremely few parts, enables simple and quick installation
  • Low-friction glide bars for smooth running

Product Range

1.Guide trough set without glide bar

Part NO.
Galvanized steel：GE.1.075
Stainless steel：GE.1.075.S

One set consists of two 2-meter guide-trough side plates.

2.Guide trough set with glide bar

Part NO.
Galvanized steel：GE.2.075
Stainless steel：GE.2.075.S

One set consists of two 2-meter Guide trough side parts and two 2-meter sliding strips.

3.Installation set

Part NO.
Galvanized steel：GE.3.075.Lc
Stainless steel：GE.3.075.Lc.S

One set consists of two fastening angles and a C-rail

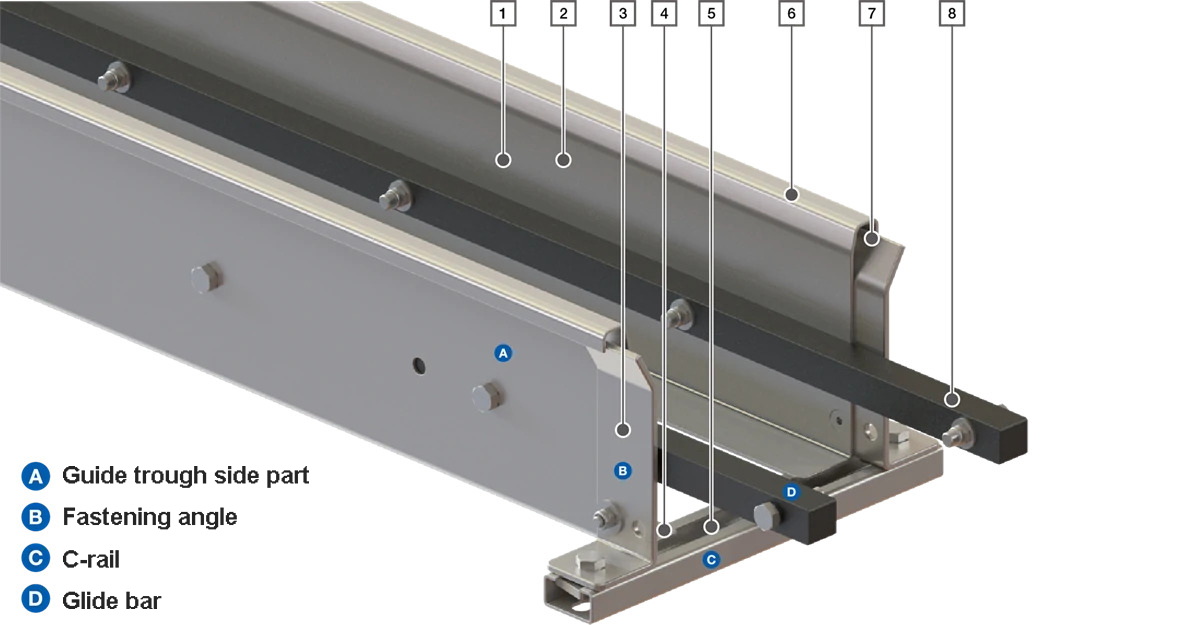

Three installation methods of the Tiewrap plates

▅ Guide troughs

▅ Glide bar

▅ C-rail

▅ Installation set


Inner cable chain width

Bi [ mm ]

C-rail length

Lc [ mm ]

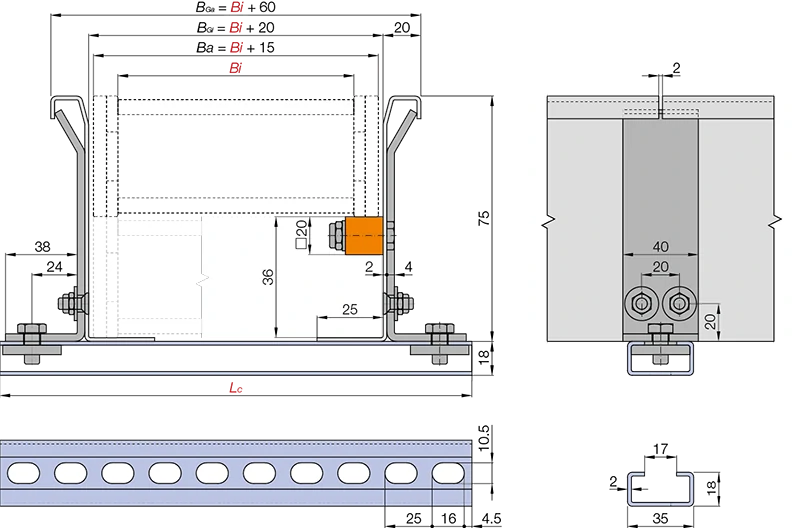

040        ▶175
060        ▶200
080        ▶225
100        ▶250

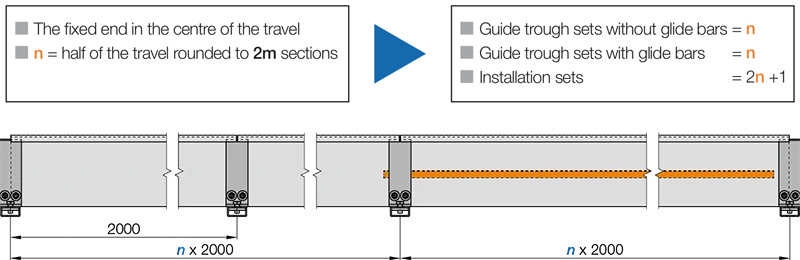

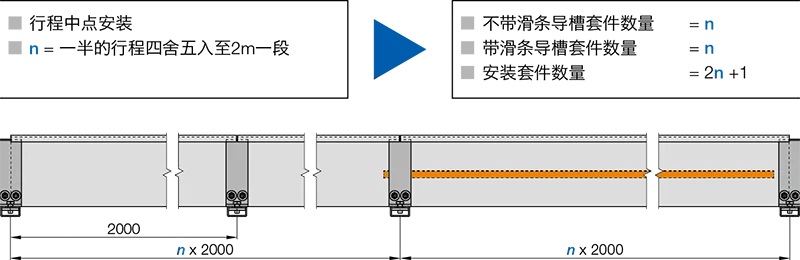

Stroke length：30m，Mid-point installation

Cable chain series：E26.060.100

Bi = 60    ▶   Lc = 200

▼

Complete GuidEasy guide trough systems

① Guide trough sets without glide barsGE.1.0758 sets
② Guide trough sets with glide barsGE.2.0758 sets
③ Installation set GE.3.075.20017 sets

1.Guide trough set without glide bar

Part No.
Galvanized steel：GE.1.110
Stainless steel：GE.1.110.S

One set consists of two 2-meter guide-trough side plates.

2.Guide trough set with glide bar

Part No.
Galvanized steel：GE.2.110
Stainless steel：GE.2.110.S

One set consists of two 2-meter guide-trough side plates, and two 2-meter gliding Bars

3.Installation set

Part No.
Galvanized steel：GE.3.110.Lc
Stainless steel：GE.3.110.Lc.S

One set consists of two fastening angles and a C-rail

Three installation methods of the Tiewrap plates

▅ Guide troughs

▅ Glide bar

▅ C-rail

▅ Installation set


Inner cable chain width

Bi [ mm ]

C-rail length

Lc [ mm ]

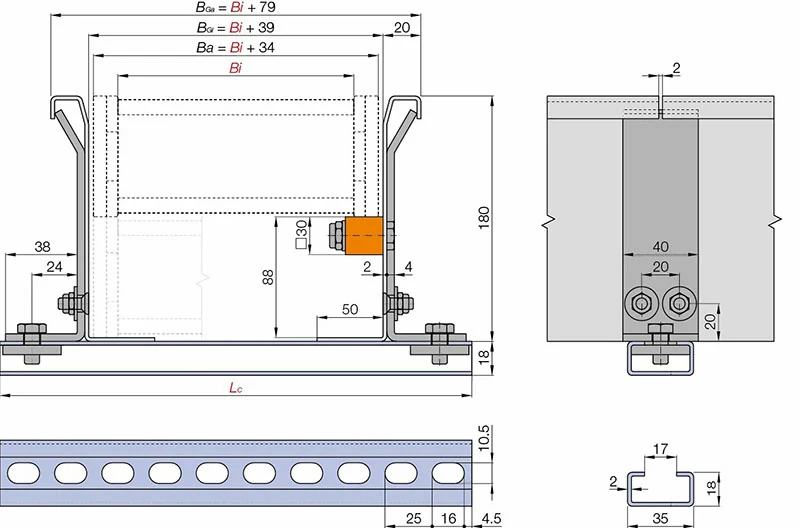

050        ▶200
075        ▶225
100        ▶250
125        ▶275
150        ▶300
175        ▶325
200        ▶350
225        ▶375
250        ▶400
275        ▶425
300        ▶450
350        ▶500
400        ▶550


Stroke length：30m，Mid-point installation

Cable chain series：G34.125.150

Bi = 125    ▶   Lc = 275

▼

Complete GuidEasy guide trough systems

① Guide trough sets without glide barsGE.1.1108 sets
② Guide trough sets with glide barsGE.2.1108 sets
③ Installation set GE.3.110.27517 sets

1.Guide trough set without glide bar

Part No.
Galvanized steel：GE.1.110
Stainless steel：GE.1.110.S

One set consists of two 2-meter guide-trough side plates.

2.Guide trough set with glide bar

Part No.
Galvanized steel：GE.2.110
Stainless steel：GE.2.110.S

One set consists of two 2-meter guide-trough side plates, and two 2-meter gliding Bars

3.Installation set

Part No.
Galvanized steel：GE.3.110.Lc
Stainless steel：GE.3.110.Lc.S

One set consists of two fastening angles and a C-rail

Three installation methods of the Tiewrap plates

▅ Guide troughs

▅ Glide bar

▅ C-rail

▅ Installation set


Inner cable chain width

Bi [ mm ]

C-rail length

Lc [ mm ]

050        ▶200
075        ▶225
100        ▶250
125        ▶275
150        ▶300
175        ▶325
200        ▶350
225        ▶375
250        ▶400
275        ▶425
300        ▶450
350        ▶500
400        ▶550


Stroke length：30m，Mid-point installation

Cable chain series：G34.125.150

Bi = 125    ▶   Lc = 275

▼

Complete GuidEasy guide trough systems

① Guide trough sets without glide barsGE.1.1108 sets
② Guide trough sets with glide barsGE.2.1108 sets
③ Installation set GE.3.110.27517 sets

1.Guide trough set without glide bar

Part No.
Galvanized steel：GE.1.130
Stainless steel：GE.1.130.S

One set consists of two 2-meter guide-trough side plates.

2.Guide trough set with glide bar

Part No.
Galvanized steel：GE.2.130
Stainless steel：GE.2.130.S

One set consists of two 2-meter guide-trough side plates, and two 2-meter gliding Bars

3.Installation set

Part No.
Galvanized steel:GE.3.130.Lc
Stainless steel:GE.3.130.Lc.S

One set consists of two fastening angles and a C-rail

Three installation methods of the Tiewrap plates

▅ Guide troughs

▅ Glide bar

▅ C-rail

▅ Installation set


Inner cable chain width

Bi [ mm ]

C-rail length

Lc [ mm ]

050        ▶200
075        ▶225
100        ▶250
125        ▶275
150        ▶300
175        ▶325
200        ▶350
225        ▶375
250        ▶400
275        ▶425
300        ▶450
350        ▶500
400        ▶550


Stroke length：30m，Mid-point installation

Cable chain series：G44.150.200

Bi = 150    ▶   Lc = 300

▼

Complete GuidEasy guide trough systems

① Guide trough sets without glide barsGE.1.1308 sets
② Guide trough sets with glide barsGE.2.1308 sets
③ Installation set GE.3.130.30017 sets

1.Guide trough set without glide bar

Part No.
Galvanized steel：GE.1.180
Stainless steel：GE.1.180.S

One set consists of two 2-meter guide-trough side plates.

2.Guide trough set with glide bar

Part No.
Galvanized steel：GE.2.180
Stainless steel：GE.2.180.S

One set consists of two 2-meter guide-trough side plates, and two 2-meter gliding Bars

3.Installation set

Part No.
Galvanized steel：GE.3.180.Lc
Stainless steel：GE.3.180.Lc.S

One set consists of two fastening angles and a C-rail

Three installation methods of the Tiewrap plates

▅ Guide troughs

▅ Glide bar

▅ C-rail

▅ Installation set


Inner cable chain width

Bi [ mm ]

C-rail length

Lc [ mm ]

075        ▶225
100        ▶250
125        ▶275
150        ▶300
175        ▶325
200        ▶350
225        ▶375
250        ▶400
300        ▶450
350        ▶500
400        ▶550
450        ▶600
500        ▶650


Stroke length：30m，Mid-point installation

Cable chain series：G60.200.250

Bi = 200    ▶   Lc = 350

▼

Complete GuidEasy guide trough systems

① Guide trough sets without glide barsGE.1.1808 sets
② Guide trough sets with glide barsGE.2.1808 sets
③ Installation set GE.3.180.35017 sets

1.Guide trough set without glide bar

Part No.
Galvanized steel：GE.1.220
Stainless steel：GE.1.220.S

One set consists of two 2-meter guide-trough side plates.

2.Guide trough set with glide bar

Part No.
Galvanized steel：GE.2.220
Stainless steel：GE.2.220.S

One set consists of two 2-meter guide-trough side plates. and two 2-meter gliding Bars

3.Installation set

Part No.
Galvanized steel：GE.3.220.Lc
Stainless steel：GE.3.220.Lc.S

One set consists of two fastening angles and a C-rail

Three installation methods of the Tiewrap plates

▅ Guide troughs

▅ Glide bar

▅ C-rail

▅ Installation set


Inner cable chain width

Bi [ mm ]

C-rail length

Lc [ mm ]

075        ▶250
100        ▶275
125        ▶300
150        ▶325
175        ▶350
200        ▶375
225        ▶400
250        ▶425
300        ▶475
350        ▶525
400        ▶575
450        ▶625
500        ▶675


Stroke length：30m，Mid-point installation

Cable chain series：G80.250.300

Bi = 250    ▶   Lc = 425

▼

Complete GuidEasy guide trough systems

① Guide trough sets without glide barsGE.1.2208 sets
② Guide trough sets with glide barsGE.2.2208 sets
③ Installation set GE.3.220.42517 sets
