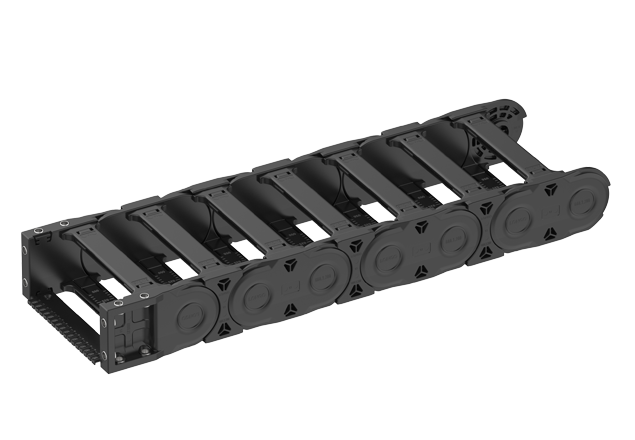

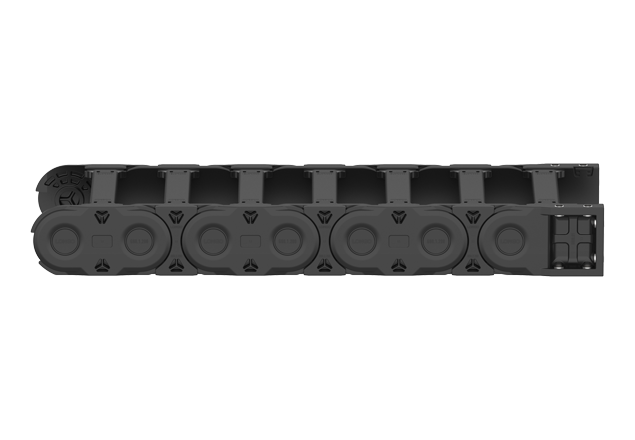

G80 Series
Open | Crossbars every link
- Inner height hi ：80 mm
- Inner widths Bi ： 75 - 500 mm
- Bending radii R ： 150 - 600 mm
- Pitch P ：111 mm
Inner height hi ：60 mm
Inner widths Bi ： 75 - 500 mm
Bending radii R ： 135 - 500 mm
Pitch P ：91 mm
| Part No. | Bi[mm] | Ba[mm] | R[mm] | Weight |
| [kg/m] | ||||
| G60.075.R | 75 | 109 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 3.87 |
| G60.100.R | 100 | 134 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 4.05 |
| G60.125.R | 125 | 159 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 4.22 |
| G60.150.R | 150 | 184 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 4.40 |
| G60.175.R | 175 | 209 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 4.58 |
| G60.200.R | 200 | 234 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 4.76 |
| G60.225.R | 225 | 259 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 4.95 |
| G60.250.R | 250 | 284 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 5.12 |
| G60.300.R | 300 | 334 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 5.49 |
| G60.350.R | 350 | 384 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 5.83 |
| G60.362.R | 362 | 396 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈5.90 |
| G60.400.R | 400 | 434 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 6.19 |
| G60.450.R | 450 | 484 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 6.54 |
| G60.500.R | 500 | 534 | 135| 150 |175 |200 | 250|300|350|400|450|500 | ≈ 6.90 |
Pivoting/Locking
| Bi
[mm] |
Part No.
MFB pivoting |
Part No.
MFB locking |
A
[mm] |
B
[mm] |
| 75 | G600.075.*.12 | G601.075.*.12 | 98 | 116 |
| 100 | G600.100.*.12 | G601.100.*.12 | 123 | 141 |
| 125 | G600.125.*.12 | G601.125.*.12 | 148 | 166 |
| 150 | G600.150.*.12 | G601.150.*.12 | 173 | 191 |
| 175 | G600.175.*.12 | G601.175.*.12 | 198 | 216 |
| 200 | G600.200.*.12 | G601.200.*.12 | 223 | 241 |
| 225 | G600.225.*.12 | G601.225.*.12 | 248 | 266 |
| 250 | G600.250.*.12 | G601.250.*.12 | 273 | 291 |
| 275 | G600.275.*.12 | G601.275.*.12 | 298 | 316 |
| 300 | G600.300.*.12 | G601.300.*.12 | 323 | 341 |
| 325 | G600.325.*.12 | G601.325.*.12 | 348 | 366 |
| 350 | G600.350.*.12 | G601.350.*.12 | 373 | 391 |
| 400 | G600.400.*.12 | G601.400.*.12 | 423 | 441 |
| 450 | G600.450.*.12* | G601.450.*.12* | 473 | 491 |
| 500 | G600.500.*.12* | G601.500.*.12* | 523 | 541 |
■ Recommended for unsupported, vertical hanging and standing applications
■ Can be fixed from the bottom and top positions
■ Optional integrated C-rails for installing cable clamps and tiewrap plates
For the complete Part NO. of MFB mounting brackets, please specify index 1 or 2 into：
1 = Links for odd
2 = Links for even
To indicate the installation position, please add index A1-A4 To complete the mounting brackets code：
Default installation position：A1
Cable chain length LK = S/2+K
|
R [mm] |
H [mm] |
D [mm] |
K [mm] |
| 135 | 358 | 316 | 610 |
| 150 | 388 | 331 | 655 |
| 175 | 438 | 356 | 735 |
| 200 | 488 | 381 | 815 |
| 250 | 588 | 431 | 970 |
| 300 | 688 | 481 | 1125 |
| 350 | 788 | 531 | 1285 |
| 400 | 888 | 581 | 1440 |
| 450 | 988 | 631 | 1600 |
| 500 | 1088 | 681 | 1755 |
Cable chain length LK = S/2+K1
|
R [mm] |
H1 [mm] |
D1 [mm] |
K1 [mm] |
ΔC [mm] |
nR [1]
|
| 135 | 270 | 316 | 610 | — | — |
| 150 | 264 | 500 | 819 | 210 | 2 |
| 175 | 264 | 560 | 910 | 240 | 2 |
| 200 | 264 | 690 | 1092 | 335 | 2 |
| 250 | 264 | 850 | 1365 | 455 | 3 |
| 300 | 264 | 1080 | 1729 | 630 | 3 |
| 350 | 264 | 1390 | 2184 | 890 | 3 |
| 400 | 264 | 1460 | 2457 | 920 | 4 |
| 450 | 264 | 1770 | 2912 | 1180 | 4 |
| 500 | 264 | 2090 | 3276 | 1450 | 4 |
| Unsupported length |
≤ 5.0 m |
| Gliding length |
≤ 350 m |
| Vertical hanging |
≤ 100 m |
| Vertical standing |
≤ 6.0 m |
| Side-mounted unsupported | ≤ 2.5 m |
| Speed/Acceleration FLG |
≤ 10 [m/s] / 50 [m/s² ] |
| Speed/Acceleration FLB |
≤ 3 [m/s] / 6 [m/s² ] |
| Gliding speed /Acceleration | ≤ 5 [m/s] / 30 [m/s² ] |
Open | Crossbars every link
Open | Crossbars every 2nd link
Closed | Openable along outer radius
Closed | Openable along outer radius
