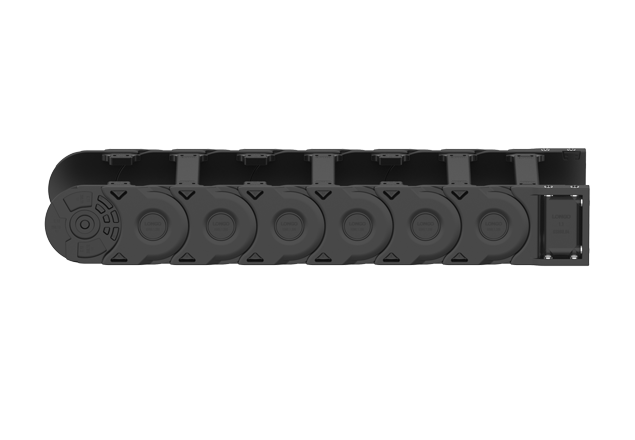

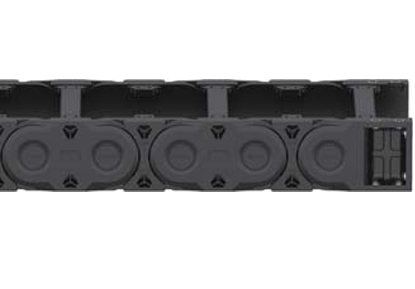

GS80H Series

GeMotion Cable chain series

PARAMETER

Inner height hi ：80 mm

Inner widths Bi ： 75 - 500 mm

Bending radii R ： 150 - 600 mm

Pitch P ：91 mm

CONTACT US

Email :clairehui@longo-tech.com

Tel : +86-18602248947

WhatsApp : +86-18602248947

Part No.	Bi [mm]	Ba [mm]	R [mm]	Weight [kg/m]
GS80H.075.R	75	105	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈3.93
GS80H.100.R	100	130	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.02
GS80H.125.R	125	155	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.10
GS80H.150.R	150	180	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.20
GS80H.175.R	175	205	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.28
GS80H.200.R	200	230	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.37
GS80H.225.R	225	255	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.47
GS80H.250.R	250	280	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.56
GS80H.275.R	275	305	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.65
GS80H.300.R	300	330	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.74
GS80H.325.R	325	355	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.83
GS80H.350.R	350	380	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.91
GS80H.362.R	362	392	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈4.95
GS80H.400.R	400	430	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈5.09
GS80H.450.R*	450	480	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈5.26
GS80H.500.R*	500	530	150\|175\|200\|250\|300\|350\|400\|450\|500\|600	≈5.44

MFB mounting brackets | Open

Pivoting I/II

Bi	Part No.	Part No.	A	B
[mm]	MFB Pivoting I	MFB Pivoting II	[mm]	[mm]
75	GS800.075.45	GS800.075.65	95	112
100	GS800.100.45	GS800.100.65	120	137
125	GS800.125.45	GS800.125.65	145	162
150	GS800.150.45	GS800.150.65	170	187
175	GS800.175.45	GS800.175.65	195	212
200	GS800.200.45	GS800.200.65	220	237
225	GS800.225.45	GS800.225.65	245	262
250	GS800.250.45	GS800.250.65	270	287
275	GS800.275.45	GS800.275.65	295	312
300	GS800.300.45	GS800.300.65	320	337
325	GS800.325.45	GS800.325.65	345	362
350	GS800.350.45	GS800.350.65	370	387
362	GS800.362.45	GS800.362.65	382	399
400	GS800.400.45	GS800.400.65	420	437
450	GS800.450.45*	GS800.450.65*	470	487
500	GS800.500.45*	GS800.500.65*	520	537

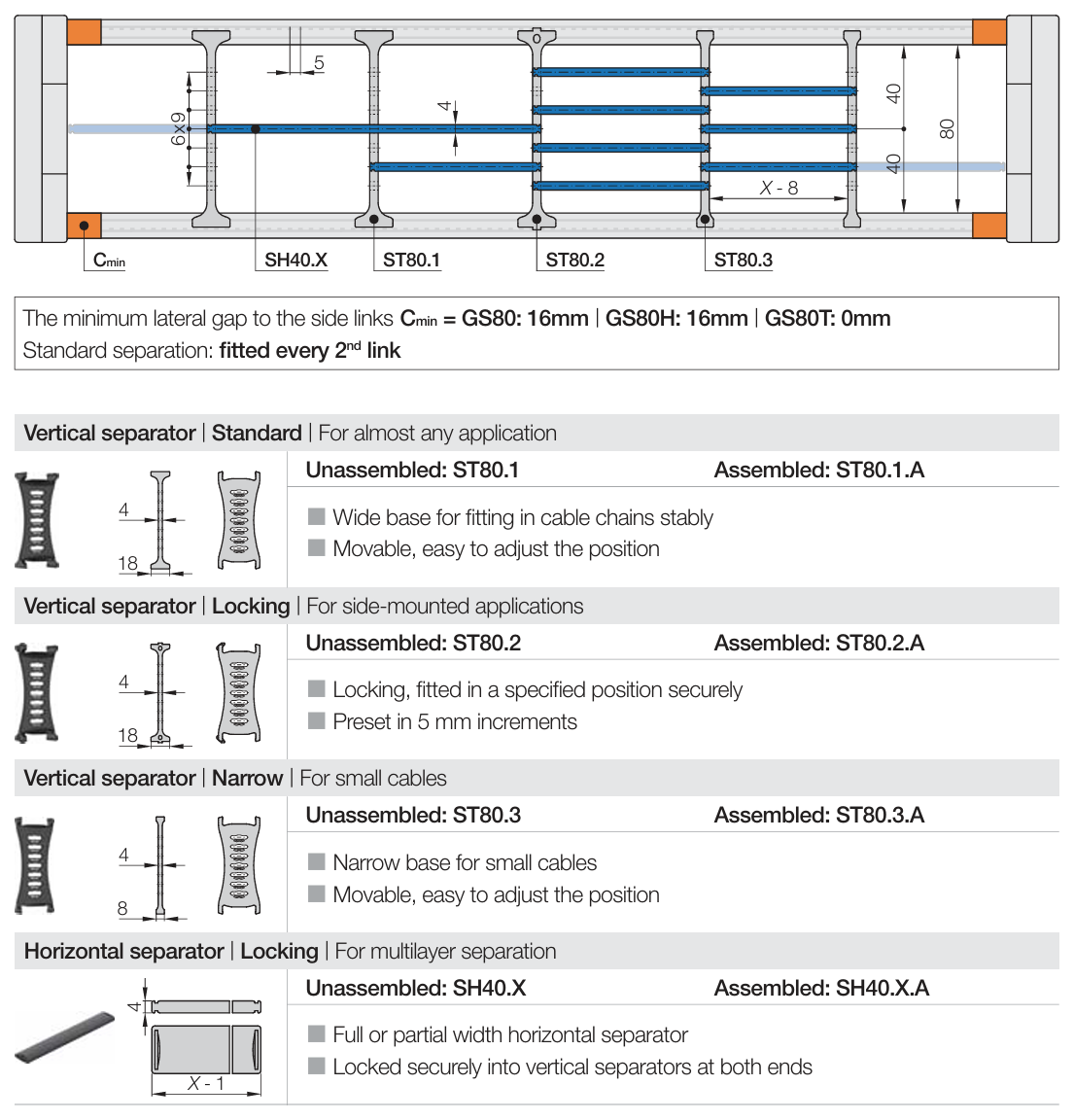

■ Recommended for unsupported, vertical hanging and standing applications

■ Can be fixed from the bottom and top positions

■ Optional integrated C-rails for installing cable clamps and tiewrap plates

To indicate the installation position, please add index A1-A4 To complete the mounting brackets code：

Default installation position：A1

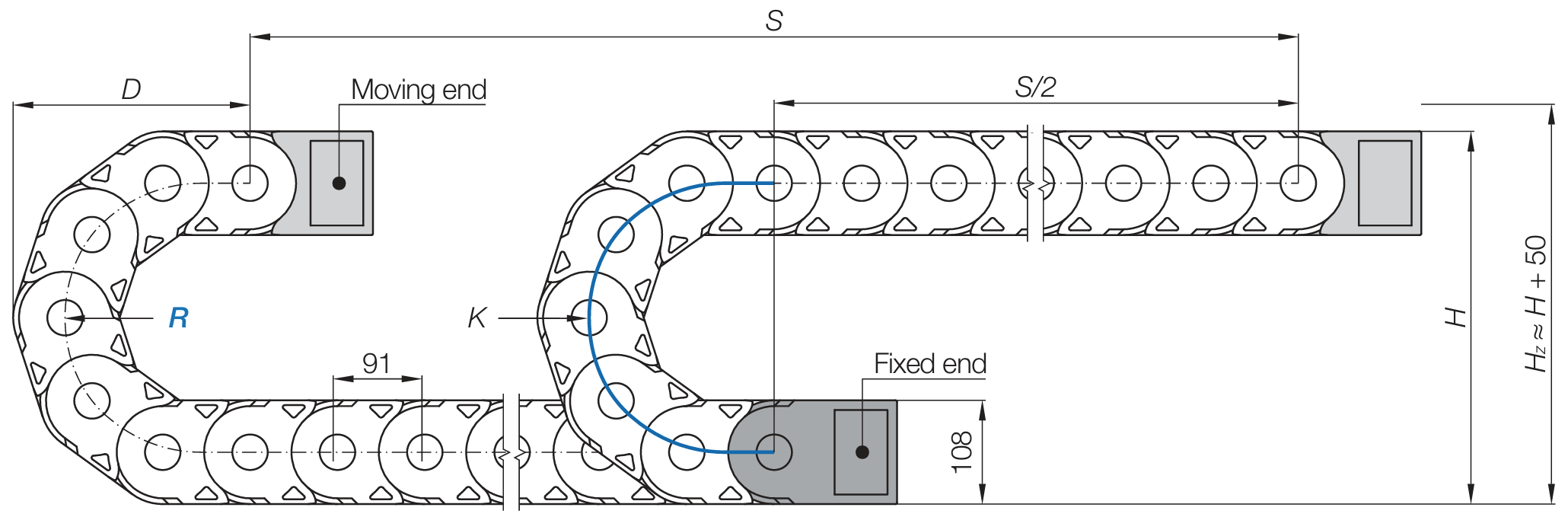

Unsupported applications | Short travels

Cable chain length LK = S/2+K

R [mm]	H [mm]	Hz [mm]	D [mm]	K [mm]
150*	408	458	341	655
175*	458	508	366	735
200	508	558	391	815
250	608	658	441	970
300	708	758	491	1125
350	808	858	541	1285
400	908	958	591	1440
450	1008	1058	641	1600
500	1108	1158	691	1755
600	1308	1358	791	2070

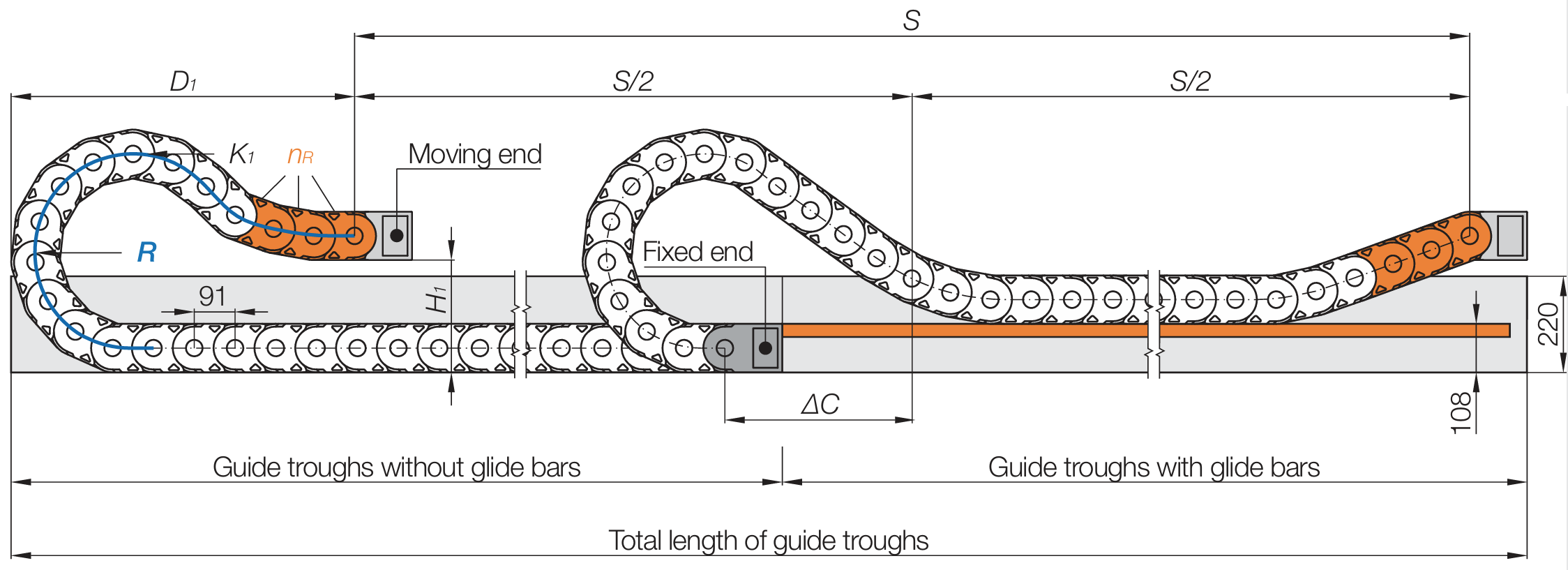

Gliding applications | Long travels

R [mm]	H₁[mm]	D₁[mm]	K₁[mm]	Δ C [mm]	n_R
150*	300	341	655	–	–
175*	350	366	735	–	–
200	324	590	1001	245	2
250	324	845	1365	450	3
300	324	1080	1729	635	3
350	324	1395	2184	900	3
400	324	1475	2457	930	4
450	324	1785	2821	1190	4
500	324	2100	3276	1455	4
600	324	2400	3913	1655	5

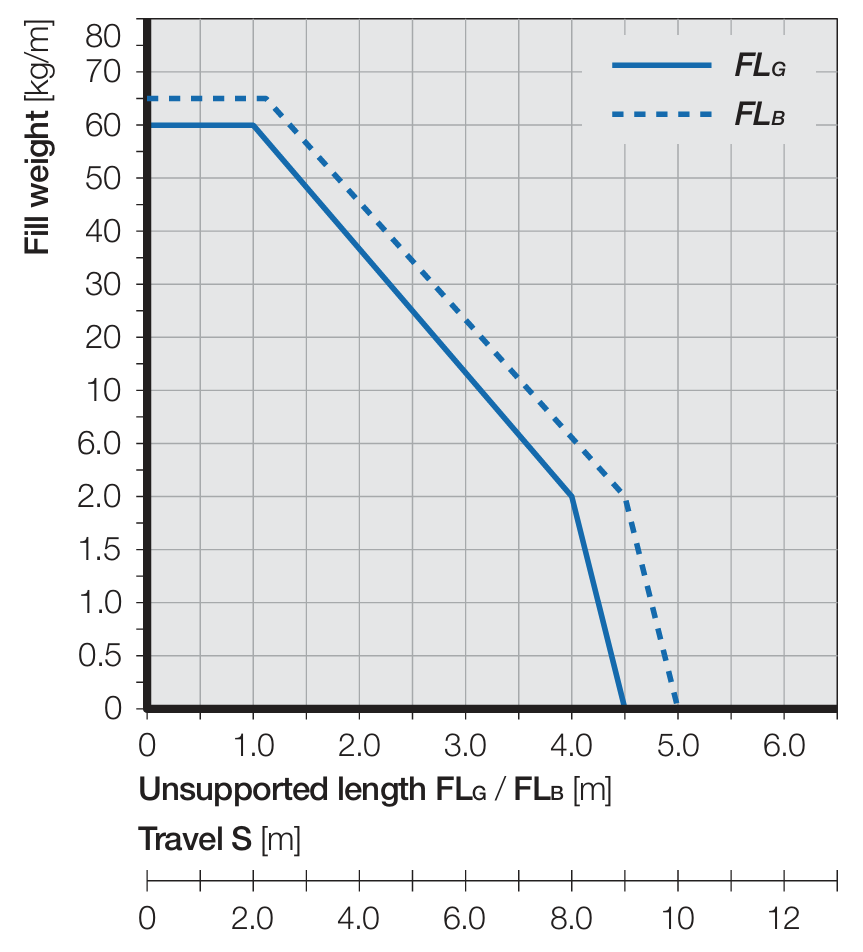

Unsupported applications | Short travels

Unsupported length	≤ 5.0m
Gliding length	≤ 350 m
Vertical hanging	≤ 100 m
Vertical standing	≤ 6.0 m
Side-mounted unsupported	≤ 2.7 m
Speed/Acceleration FLG	≤ 10 [m/s] / 50 [m/s² ]
Speed/Acceleration FLB	≤ 2 [m/s] / 4 [m/s² ]
Gliding speed /Acceleration	≤ 5 [m/s] / 30 [m/s² ]
