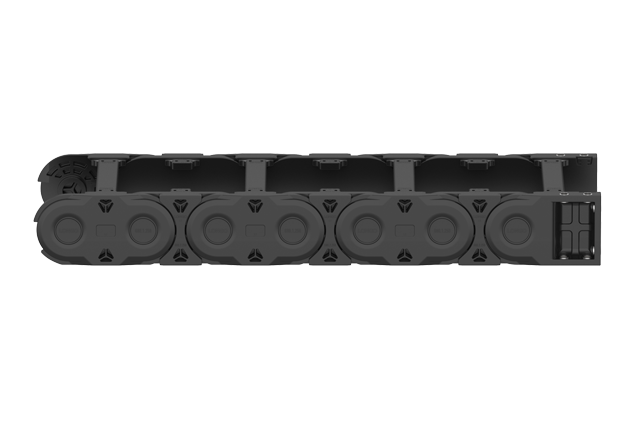

G80H Series

GeMotion Cable chain series

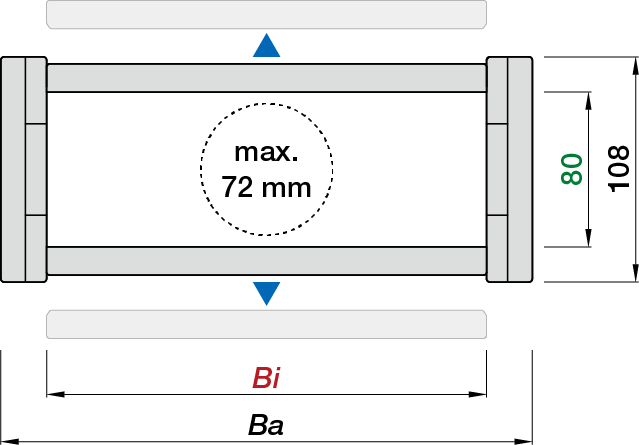

PARAMETER

Inner height hi ：80 mm

Inner widths Bi ： 75 - 500 mm

Bending radii R ： 150 - 600 mm

Pitch P ：111 mm

CONTACT US

Email :clairehui@longo-tech.com

Tel : +86-18602248947

WhatsApp : +86-18602248947

Part No. Bi[mm] Ba[mm] R[mm] Weight[kg/m]
G80H.075.R 75 125 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 6.10
G80H.100.R 100 150 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 6.17
G80H.125.R 125 175 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 6.24
G80H.150.R 150 200 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 6.31
G80H.175.R 175 225 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 6.38
G80H.200.R 200 250 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 6.46
G80H.225.R 225 275 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 6.54
G80H.250.R 250 325 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 6.61
G80H.300.R 300 350 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 6.76
G80H.350.R 350 400 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 6.89
G80H.362.R 362 412 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 6.93
G80H.400.R 400 450 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 7.04
G80H.450.R 450 500 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 7.18
G80H.500.R 500 550 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 ≈ 7.33

MFB mounting brackets | Open

Pivoting/Locking

Bi [mm] Part No.

MFB pivoting

 Part No.

MFB locking

 A [mm] B [mm]
75 G800.075.*.12* G801.075.*.12* 103 125
100 G800.100.*.12* G801.100.*.12* 128 150
125 G800.125.*.12* G801.125.*.12* 153 175
150 G800.150.*.12* G801.150.*.12* 178 200
175 G800.175.*.12* G801.175.*.12* 203 225
200 G800.200.*.12* G801.200.*.12* 228 250
225 G800.225.*.12* G801.225.*.12* 253 275
250 G800.250.*.12* G801.250.*.12* 278 300
275 G800.275.*.12* G801.275.*.12* 303 325
300 G800.300.*.12* G801.300.*.12* 328 350
325 G800.325.*.12* G801.325.*.12* 353 375
350 G800.350.*.12* G801.350.*.12* 378 400
400 G800.400.*.12* G801.400.*.12* 428 450
450 G800.450.*.12* G801.450.*.12* 478 500
500 G800.500.*.12* G801.500.*.12* 528 550

■ Recommended for unsupported, vertical hanging and standing applications

■ Can be fixed from the bottom and top positions

■ Optional integrated C-rails for installing cable clamps and tiewrap plates

For the complete Part NO. of MFB mounting brackets, please specify index 1 or 2 into：

1 = Links for odd

2 = Links for even



Unsupported applications | Short travels

Cable chain length LK = S/2+K



R[mm]

H[mm]

D[mm]

K[mm]
150 408 371 695
175 458 396 775
200 508 421 855
250 608 471 1010
300 708 521 1165
350 808 571 1325
400 908 621 1480
450 1008 671 1640
500 1108 721 1795
600 1308 821 2110



Gliding applications | Long travels

Cable chain length LK = S/2+K1

R[mm]

H1[mm]

D1[mm]

K1[mm]

ΔC[mm]

nR
150 300 371 695 — —
175 350 396 775 — —
200 324 650 999 275 2
250 324 840 1332 415 2
300 324 1020 1665 550 3
350 324 1290 1998 760 3
400 324 1550 2442 980 3
450 324 1630 2664 1010 4
500 324 1890 3108 1220 4
600 324 2530 3996 1760 4

Unsupported length
 ≤ 6.0 m
Gliding length

≤ 350 m
Vertical hanging

≤ 100 m
Vertical standing

≤ 6.0 m
Side-mounted unsupported ≤ 3.0 m
Speed/Acceleration FLG

≤ 10 [m/s] / 50 [m/s² ]
Speed/Acceleration FLB

≤ 3 [m/s] / 6 [m/s² ]
Gliding speed /Acceleration ≤ 5 [m/s] / 30 [m/s² ]
