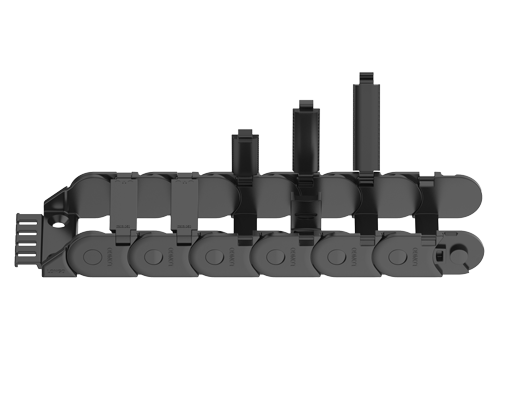

EasyClip mini Series

Small size, easy to assemble

The EasyClip mini is built for low-load and tight-space applications. Its small pitch ensures smooth, quiet operation. The openable hinged crossbars allow for quick and easy cable and hose installation.

  • Crossbars openable along the outer or inner radius on both sides
  • Small pitch, low vibration, low noise
  • Dual-stop design for extended service life in highly dynamic operations.
  • Separators are available
  • Strong mounting brackets with or without tiewrap plates

Typical industries and applications
Inkjet printers | Textile machines | Robots | Linear modules | Electronic equipment | Test equipment | Medical equipment | Automatic doors

E10 Series

Open | Openable along outer radius

  • Inner height hi ：10 mm
  • Inner widths Bi ： 10 - 50 mm
  • Bending radii R ： 018 - 038 mm
  • Pitch P ：20 mm
+ VIEW MORE

E15 Series

Open | Openable along outer radius

  • Inner height hi ：15 mm
  • Inner widths Bi ： 10 - 50 mm
  • Bending radii R ： 028 - 075 mm
  • Pitch P ：20 mm
+ VIEW MORE

E17 Series

Open | Openable along outer radius

  • Inner height hi ：17 mm
  • Inner widths Bi ： 15 - 100 mm
  • Bending radii R ： 028 - 180 mm
  • Pitch P ：30.3 mm
+ VIEW MORE

E21 Series

Open | Openable along outer radius

  • Inner height hi ：21 mm
  • Inner widths Bi ： 25 - 100 mm
  • Bending radii R ： 035 - 180 mm
  • Pitch P ：33.3 mm
+ VIEW MORE

E10i Series

Open | Openable along outer radius

  • Inner height hi ：10 mm
  • Inner widths Bi ： 10 - 50 mm
  • Bending radii R ： 018 - 038 mm
  • Pitch P ：20 mm
+ VIEW MORE

E15i Series

Open | Openable along inner radius

  • Inner height hi ：15 mm
  • Inner widths Bi ： 10 - 50 mm
  • Bending radii R ： 028 - 075 mm
  • Pitch P ：20 mm
+ VIEW MORE

E17i Series

Open | Openable along inner radius

  • Inner height hi ：17 mm
  • Inner widths Bi ： 15 - 100 mm
  • Bending radii R ： 028 - 180 mm
  • Pitch P ：30.3 mm
+ VIEW MORE

E21i Series

Open | Openable along inner radius

  • Inner height hi ：21 mm
  • Inner widths Bi ： 25 - 100 mm
  • Bending radii R ： 035 - 180 mm
  • Pitch P ：33.3 mm
+ VIEW MORE

E10C Series

One-piece | Closed

  • Inner height hi ：10 mm
  • Inner widths Bi ： 10-50 mm
  • Bending radii R ： 018-038 mm
  • Pitch P ：20 mm
+ VIEW MORE
