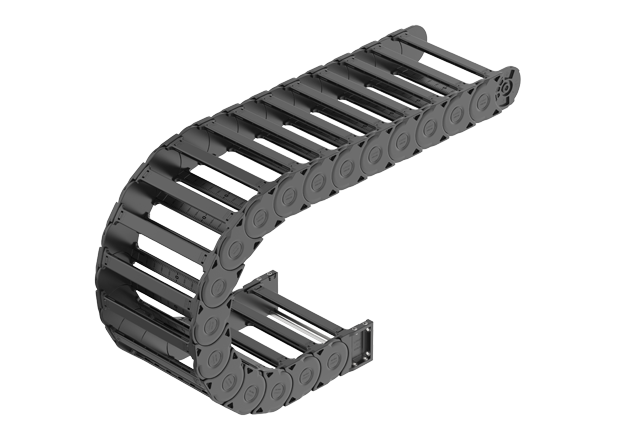

GS80 Series

GeMotion Cable chain series

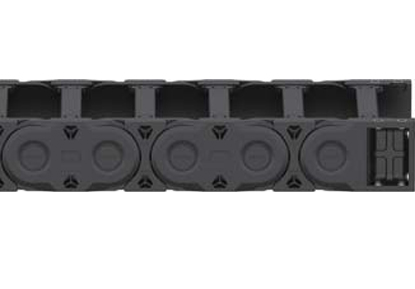

PARAMETER

Inner height hi ：80 mm

Inner widths Bi ： 75 - 500 mm

Bending radii R ： 150 - 600 mm

Pitch P ：91 mm

CONTACT US

Email :clairehui@longo-tech.com

Tel : +86-18602248947

WhatsApp : +86-18602248947

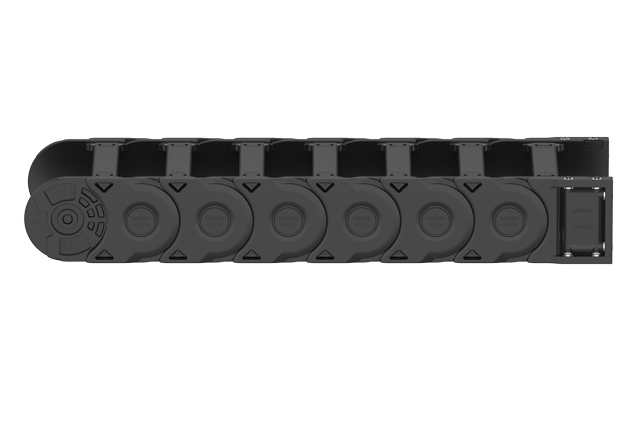

Part No. Bi Ba R Weight
Cable chain [mm] [mm] [mm] [kg/m]
GS80.075.R 75 105 150|175|200|250|300|350|400|450|500|600 ≈4.18
GS80.100.R 100 130 150|175|200|250|300|350|400|450|500|600 ≈4.36
GS80.125.R 125 155 150|175|200|250|300|350|400|450|500|600 ≈4.53
GS80.150.R 150 180 150|175|200|250|300|350|400|450|500|600 ≈4.71
GS80.175.R 175 205 150|175|200|250|300|350|400|450|500|600 ≈4.89
GS80.200.R 200 230 150|175|200|250|300|350|400|450|500|600 ≈5.07
GS80.225.R 225 255 150|175|200|250|300|350|400|450|500|600 ≈5.26
GS80.250.R 250 280 150|175|200|250|300|350|400|450|500|600 ≈5.43
GS80.275.R 275 305 150|175|200|250|300|350|400|450|500|600 ≈5.62
GS80.300.R 300 330 150|175|200|250|300|350|400|450|500|600 ≈5.80
GS80.325.R 325 355 150|175|200|250|300|350|400|450|500|600 ≈5.98
GS80.350.R 350 380 150|175|200|250|300|350|400|450|500|600 ≈6.14
GS80.362.R 362 392 150|175|200|250|300|350|400|450|500|600 ≈6.22
GS80.400.R 400 430 150|175|200|250|300|350|400|450|500|600 ≈6.50
GS80.450.R* 450 480 150|175|200|250|300|350|400|450|500|600 ≈6.85
GS80.500.R* 500 530 150|175|200|250|300|350|400|450|500|600 ≈7.21

MFB mounting brackets | Open

Pivoting I/II

Bi Part No. Part No. A B
[mm] MFB Pivoting I MFB Pivoting II [mm] [mm]
75 GS800.075.45 GS800.075.65 95 112
100 GS800.100.45 GS800.100.65 120 137
125 GS800.125.45 GS800.125.65 145 162
150 GS800.150.45 GS800.150.65 170 187
175 GS800.175.45 GS800.175.65 195 212
200 GS800.200.45 GS800.200.65 220 237
225 GS800.225.45 GS800.225.65 245 262
250 GS800.250.45 GS800.250.65 270 287
275 GS800.275.45 GS800.275.65 295 312
300 GS800.300.45 GS800.300.65 320 337
325 GS800.325.45 GS800.325.65 345 362
350 GS800.350.45 GS800.350.65 370 387
362  GS800.362.45  GS800.362.65 382 399
400 GS800.400.45 GS800.400.65 420 437
450 GS800.450.45* GS800.450.65* 470 487
500 GS800.500.45* GS800.500.65* 520 537

■ Recommended for unsupported, vertical hanging and standing applications

■ Can be fixed from the bottom and top positions

■ Optional integrated C-rails for installing cable clamps and tiewrap plates

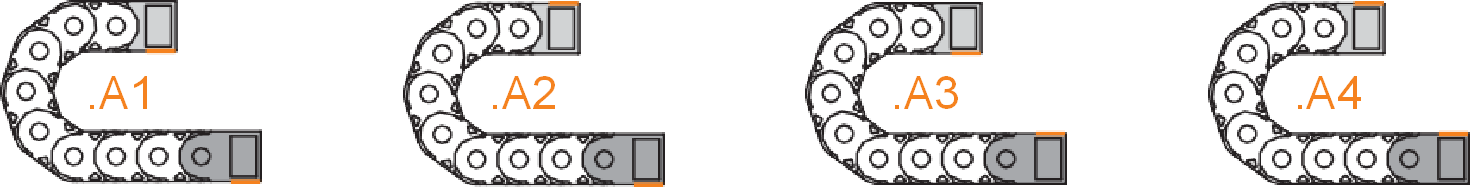

To indicate the installation position, please add index A1-A4 To complete the mounting brackets code：

Default installation position：A1

Unsupported applications | Short travels

Cable chain length LK = S/2+K

R [mm] H [mm] Hz [mm] D [mm] K [mm]
150* 408 458 341 655
175* 458 508 366 735
200 508 558 391 815
250 608 658 441 970
300 708 758 491 1125
350 808 858 541 1285
400 908 958 591 1440
450 1008 1058 641 1600
500 1108 1158 691 1755
600 1308 1358 791 2070

Gliding applications | Long travels

R [mm] H1[mm] D1[mm] K1[mm] Δ C [mm] NR
150* 300 341 655 – –
175* 350 366 735 – –
200 324 590 1001 245 2
250 324 845 1365 450 3
300 324 1080 1729 635 3
350 324 1395 2184 900 3
400 324 1475 2457 930 4
450 324 1785 2821 1190 4
500 324 2100 3276 1455 4
600 324 2400 3913 1655 5





Unsupported applications | Short travels

Unsupported length ≤ 5.0m
Gliding length ≤ 350 m
Vertical hanging ≤ 100 m
Vertical standing ≤ 6.0 m
Side-mounted unsupported ≤ 2.7 m
Speed/Acceleration FLG ≤ 10 [m/s] / 50 [m/s² ]
Speed/Acceleration FLB ≤ 2 [m/s] / 4 [m/s² ]
Gliding speed /Acceleration ≤ 5 [m/s] / 30 [m/s² ]
