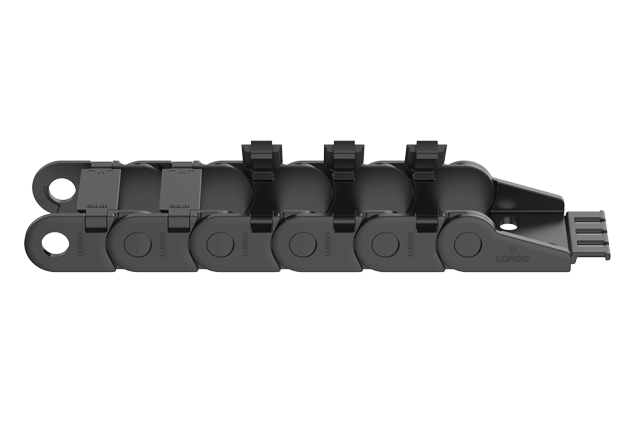

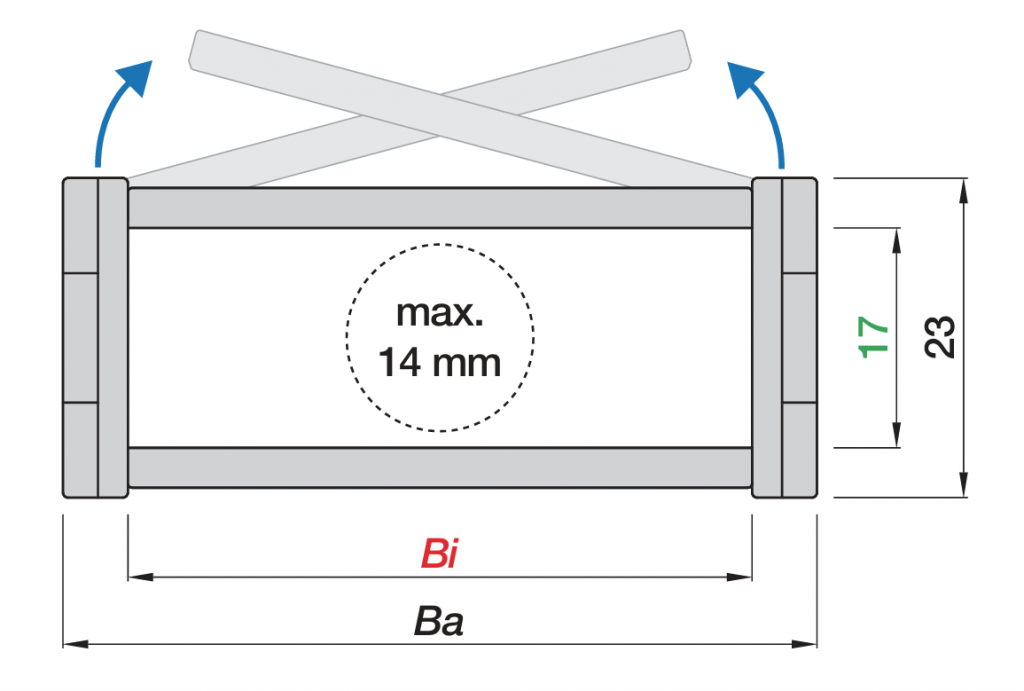

| 拖链代码 | Bi[mm] | Ba[mm] | R[mm] | 重量[kg/m] |
| E17.015.R* | 15 | 27 | 028|038|048|060|075|100|125|150|180 | ≈0.36 |
| E17.025.R | 25 | 37 | 028|038|048|060|075|100|125|150|180 | ≈0.39 |
| E17.038.R | 38 | 50 | 028|038|048|060|075|100|125|150|180 | ≈0.43 |
| E17.050.R | 50 | 62 | 028|038|048|060|075|100|125|150|180 | ≈0.46 |
