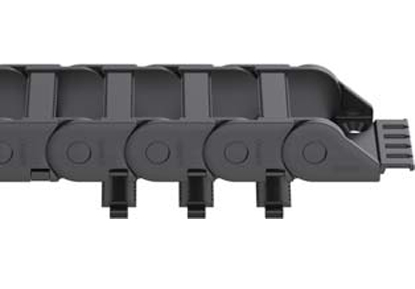

E21i Series

EasyClip mini Cable chain series

PARAMETER

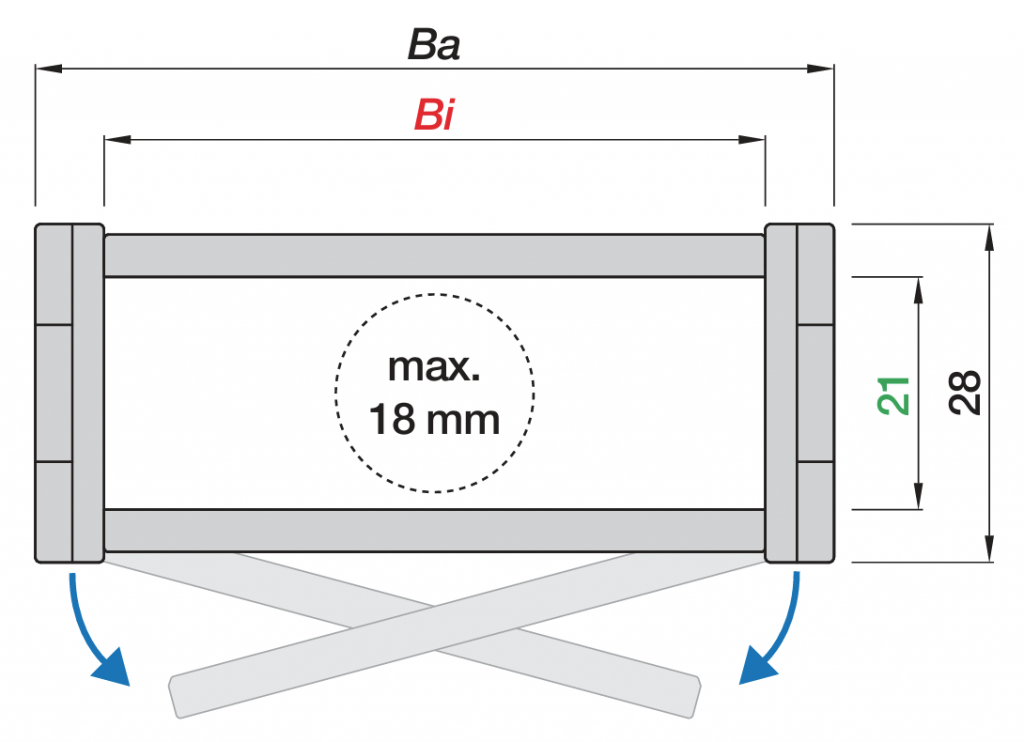

Inner height hi ：21 mm

Inner widths Bi ： 25 - 100 mm

Bending radii R ： 035 - 180 mm

Pitch P ：33.3 mm

CONTACT US

Email :clairehui@longo-tech.com

Tel : +86-18602248947

WhatsApp : +86-18602248947

Part No. Bi[mm] Ba[mm] R[mm] Weight[kg/m]
E21i.025.R 25 37 035|038|048|060|075|100|125|150|180 ≈ 0.45
E21i.038.R 38 50 035|038|048|060|075|100|125|150|180 ≈ 0.49

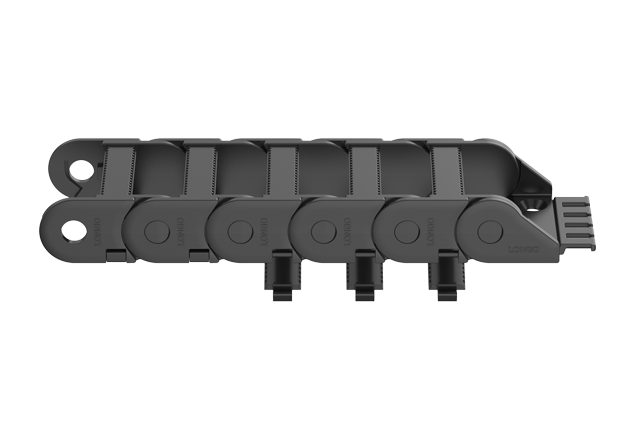

E21i.050.R 50 62 035|038|048|060|075|100|125|150|180 ≈ 0.52
E21i.068.R 68 80 035|038|048|060|075|100|125|150|180 ≈ 0.57
E21i.080.R 80 92 035|038|048|060|075|100|125|150|180 ≈0.60
E21i.100.R* 100 112 035|038|048|060|075|100|125|150|180 ≈ 0.66

ZB mounting brackets

Locking/Pivoting

Bi ZB mounting brackets Part No.|Locking ZB mounting brackets Part No.|Pivoting A Number of teeth nz
[mm] with tiewrap plates without tiewrap plates with tiewrap plates without tiewrap plates [mm] [1]
25 E210.025.12.Z E210.025.12 E210.025.34.Z E210.025.34 13 3
38 E210.038.12.Z E210.038.12 E210.038.34.Z E210.038.34 24 4
50 E210.050.12.Z E210.050.12 E210.050.34.Z E210.050.34 36 5
68 E210.068.12.Z E210.068.12 E210.068.34.Z E210.068.34 54 7
80 E210.080.12.Z E210.080.12 E210.080.34.Z E210.080.34 66 8
100 E210.100.12.Z* E210.100.12* E210.100.34.Z* E210.100.34* 86 10



a. ZB Locking mounting brackets: Recommended for unsupported, vertical hanging, and standing applications

b. ZB Pivoting mounting brackets: Recommended for gliding application

c. Can be fixed from the bottom

d. Optional tiewrap plates for securing cables

To indicate the installation position, please add index A1-A4 To complete the mounting brackets code： Default installation position：A1

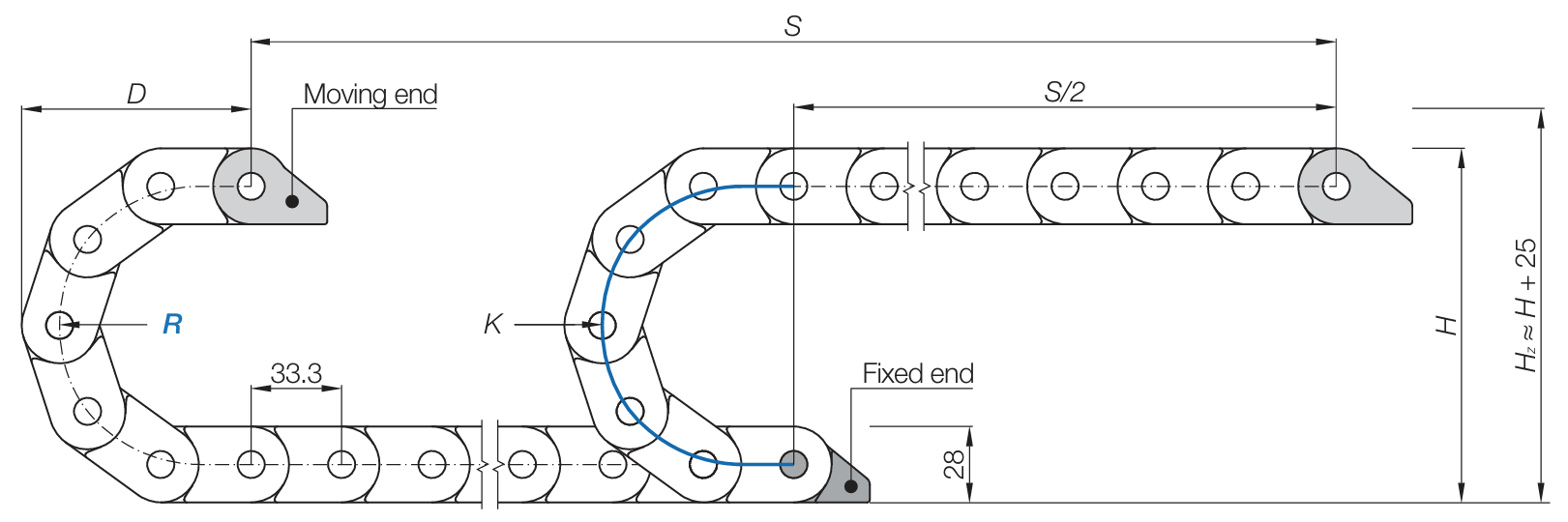

Unsupported applications | Short travels

Cable chain length LK = S/2+K

R[mm] H [mm] Hz [mm] D [mm] K [mm]
035 98 123 99 180
038 104 129 102 190
048 124 149 112 220
060 148 173 124 260
075 178 203 139 305
100 228 253 164 385
125 278 303 189 460
150 328 353 214 540
180 388 413 244 635

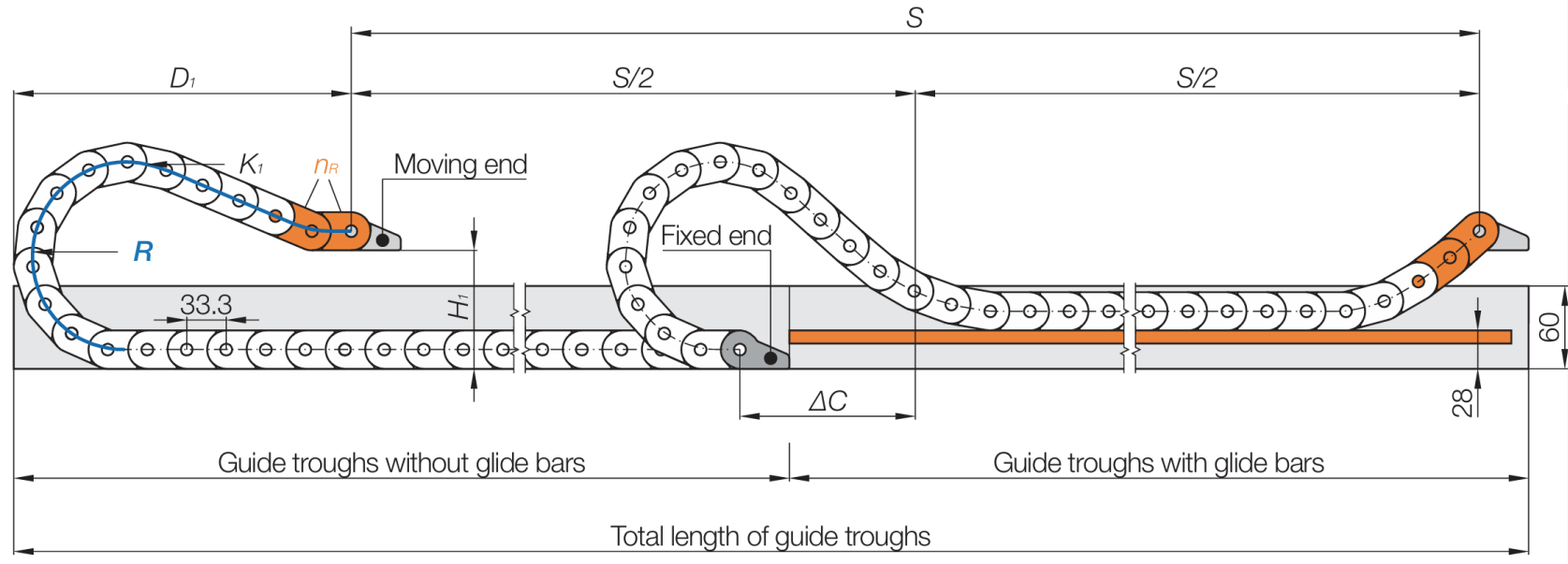

Gliding applications | Long travels

Cable chain length LK = S/2+K1

R [mm] H1 [mm] D1 [mm] K1 [mm] DC [mm] NR[1]
035 70 99 180 – –
038 76 102 190 – –
048 96 112 220 – –
060 84 195 335 85 2
075 84 280 435 155 2
100 84 350 600 200 3
125 84 510 800 335 3
150 84 640 1000 440 4
180 84 770 1235 540 4

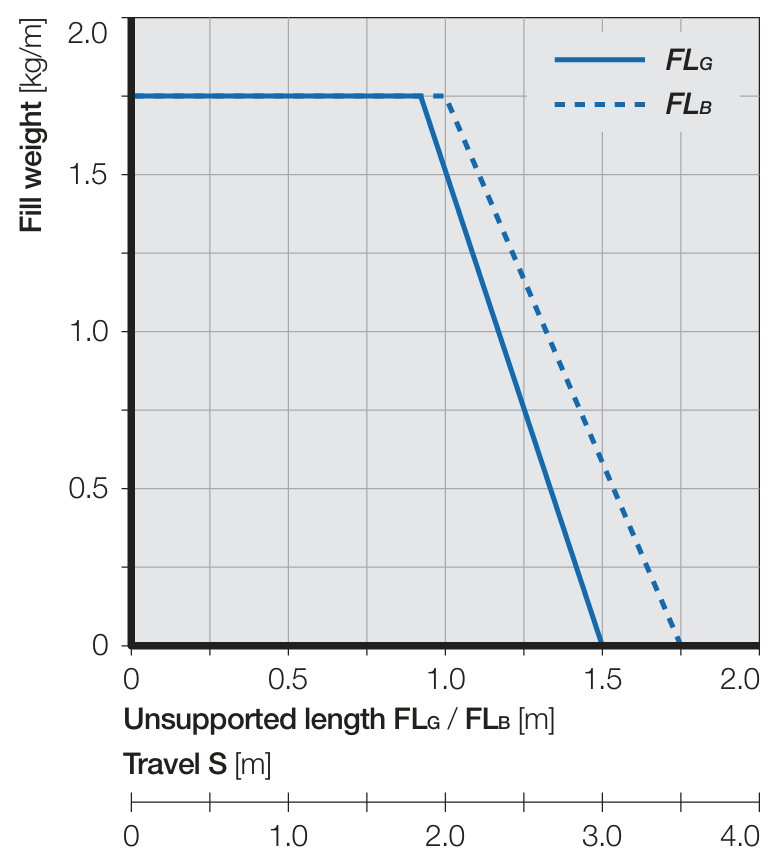

Unsupported applications | Short travels

Unsupported length ≤ 1.75 m
Gliding length ≤ 70 m
Vertical hanging ≤ 30 m
Vertical standing ≤ 2 m
Side-mounted unsupported ≤ 0.8 m
Speed/Acceleration FLG ≤ 10 [m/s] / 50 [m/s² ]
Speed/Acceleration FLB ≤ 2 [m/s] / 4 [m/s² ]
Gliding speed /Acceleration ≤ 4 [m/s] / 20 [m/s² ]
