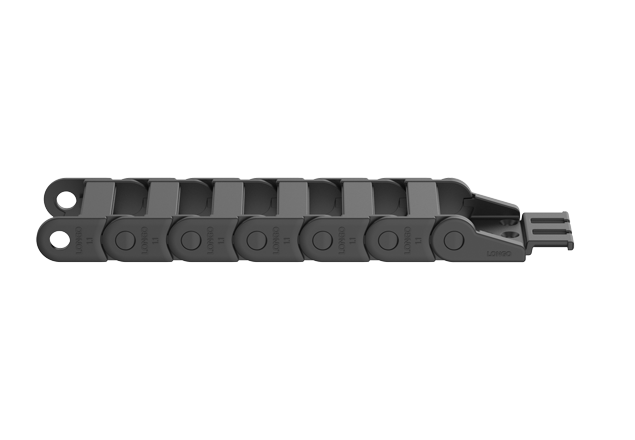

E10C Series

EasyClip mini Cable chain series

PARAMETER

Inner height hi ：10 mm

Inner widths Bi ： 10-50 mm

Bending radii R ： 018-038 mm

Pitch P ：20 mm

CONTACT US

Email :clairehui@longo-tech.com

Tel : +86-18602248947

WhatsApp : +86-18602248947

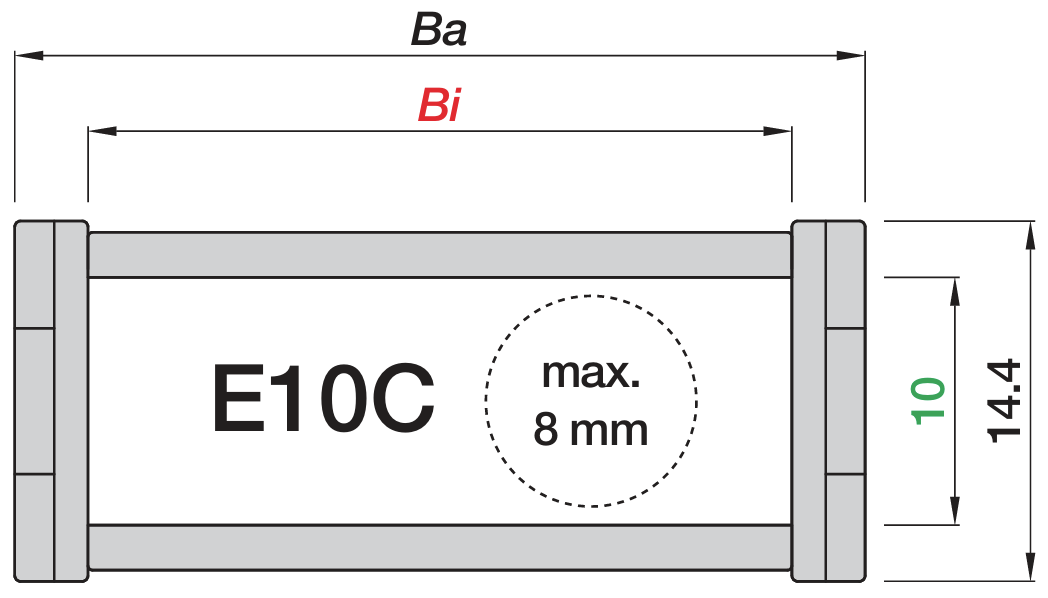

Part No. Bi[mm] Ba[mm] R[mm] Weight[kg/m]
E10C.10.R* 10 18 018|028|038 ≈0.16
E10C.16.R* 16 24 018|028|038 ≈0.18
E10C.20.R 20 28 018|028|038 ≈0.19
E10C.30.R* 30 38 018|028|038 ≈0.21
E10C.40.R* 40 48 018|028|038 ≈0.24
E10C.50.R* 50 58 018|028|038 ≈0.26

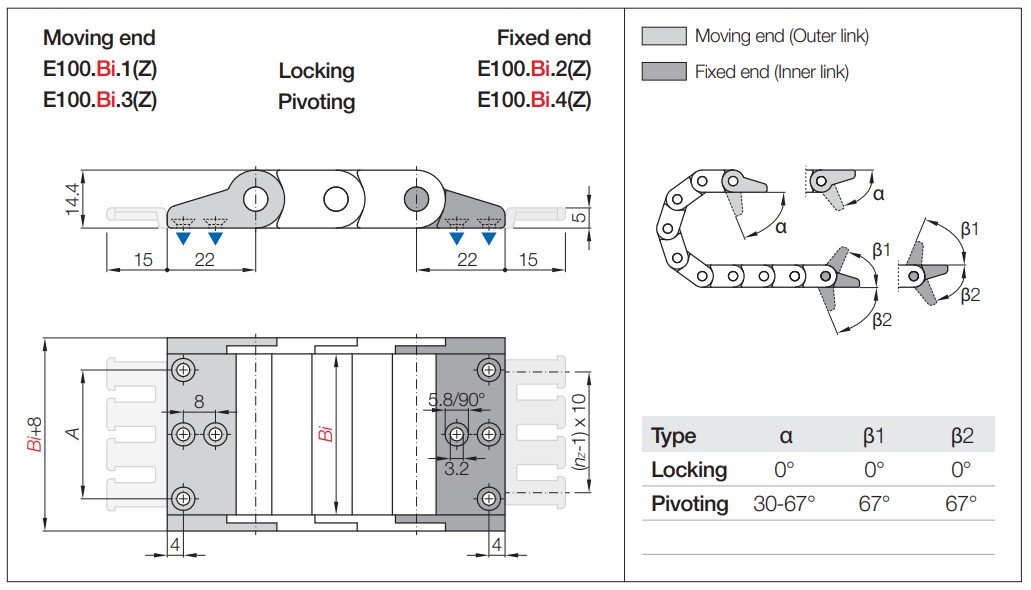

ZB mounting brackets

Locking/Pivoting

Bi

[mm]

 ZB mounting brackets Part No.|Locking ZB mounting brackets Part No.|Pivoting A

[mm]

 Number of teeth nz

[1]
with tiewrap plates without tiewrap plates with tiewrap plates without tiewrap plates
10 E100.10.12.Z E100.10.12 E100.10.34.Z E100.10.34 – 1
16 E100.16.12.Z E100.16.12 E100.16.34.Z E100.16.34 – 2
20 E100.20.12.Z E100.20.12 E100.20.34.Z E100.20.34 – 2
30 E100.30.12.Z* E100.30.12* E100.30.34.Z* E100.30.34* 22 3
40 E100.40.12.Z* E100.40.12* E100.40.34.Z* E100.40.34* 32 4
50 E150.50.12.Z* E100.50.12* E100.50.34.Z* E100.50.34* 42 5

a. Recommended for unsupported, vertical hanging and standing applications

b. Can be fixed from the bottom and top positions

c. Optional integrated C-rails for installing cable clamps and tiewrap plates

To indicate the installation position, please add index A1-A4 To complete the mounting brackets code：

Default installation position：A1





Unsupported applications | Short travels

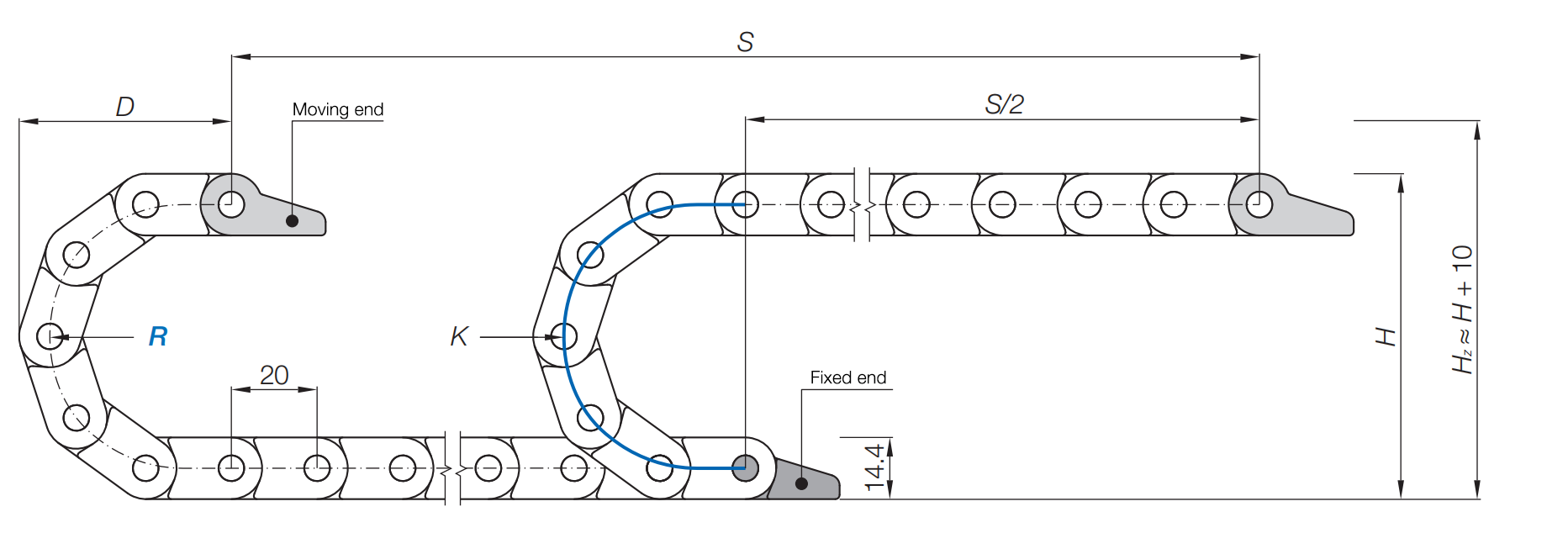

Cable chain length LK = S/2+K

R [mm] H [mm] Hz [mm] D [mm] K[mm]
018 51 61 56 100
028 71 81 66 130
038 91 101 76 160



Gliding applications | Long travels

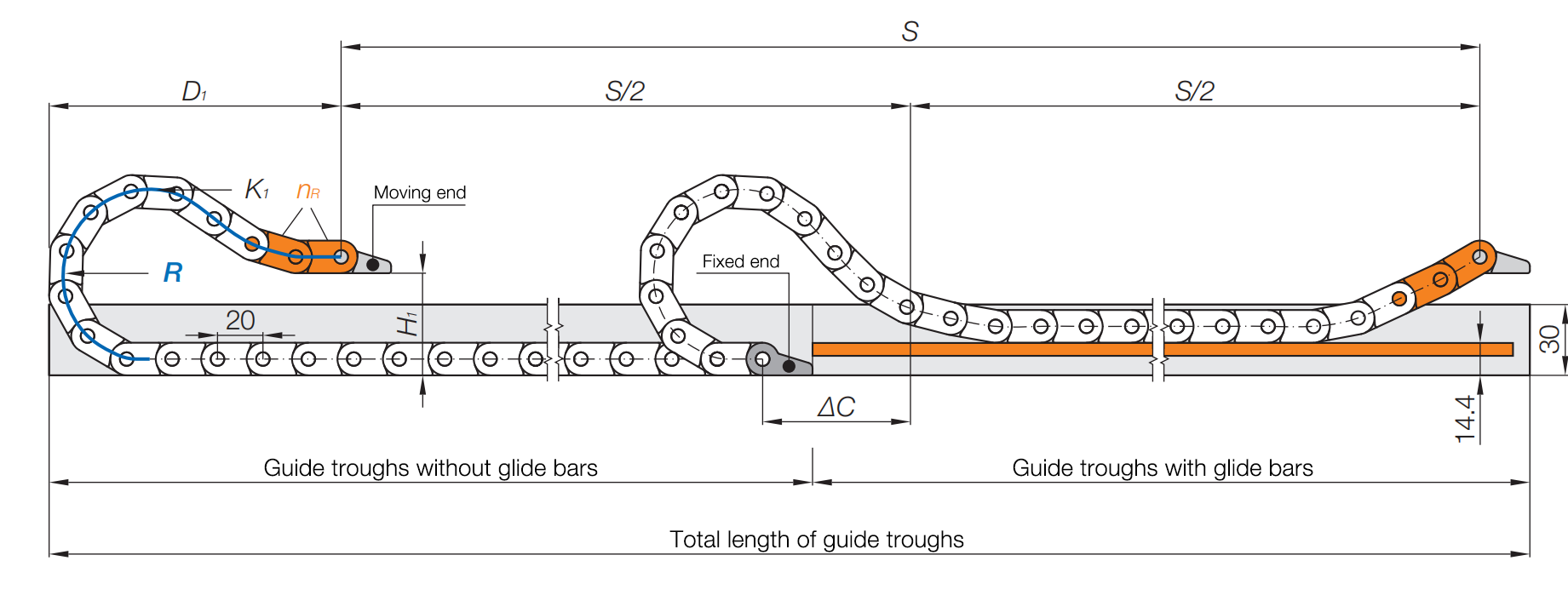

Cable chain length LK = S/2+K1

R[mm] H1 [mm] D1 [mm] K1 [mm] △C [mm] nR[1]
018 36 56 100 – –
028 45 110 160 50 2
038 45 145 220 75 2

Unsupported applications | Short travels

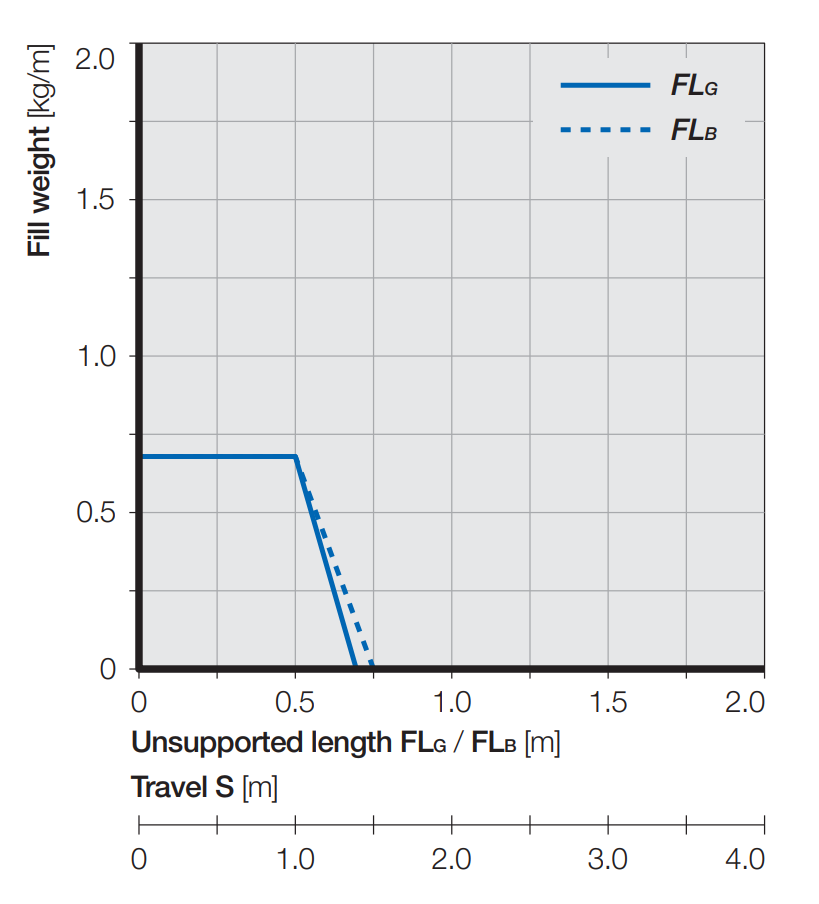

Unsupported length ≤ 0.75 m
Gliding length ≤ 30 m
Vertical hanging ≤ 20 m
Vertical standing ≤ 1.5 m
Side-mounted unsupported ≤ 0.6 m

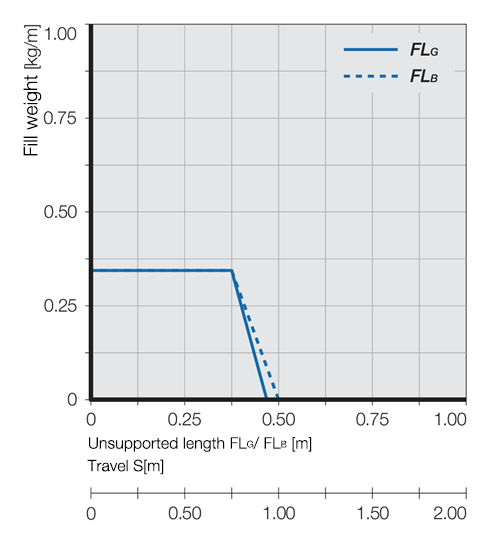

Speed/Acceleration FLG ≤ 10 [m/s] / 50 [m/s² ]
Speed/Acceleration FLB ≤ 2 [m/s] / 4 [m/s² ]
Gliding speed /Acceleration ≤ 4 [m/s] / 20 [m/s² ]
