G60T Series
Closed | Openable along outer radius
- Inner height hi ：60 mm
- Inner widths Bi ： 100 - 400 mm
- Bending radii R ： 150 - 500 mm
- Pitch P ：91 mm

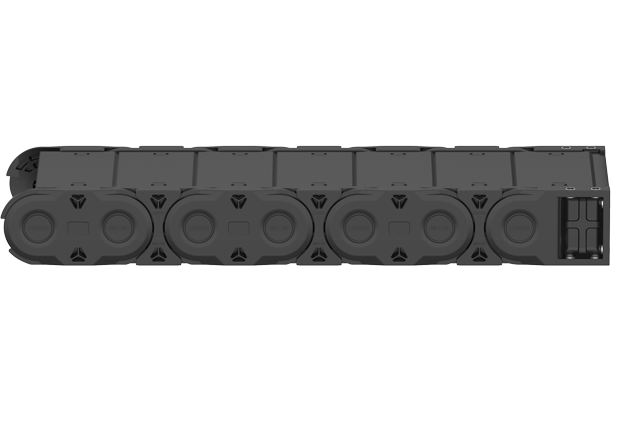

Inner height hi ：80 mm
Inner widths Bi ： 100 - 400 mm
Bending radii R ： 200 - 600 mm
Pitch P ：111 mm
|
Part No. |
Bi[mm] |
Ba[mm] |
R[mm] |
Weight[kg/m] |
| G80T.100.R | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | ≈ 6.82 |
| G80T.150.R | 150 | 200 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | ≈ 7.47 |
| G80T.200.R | 200 | 250 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | ≈ 8.12 |
| G80T.250.R | 250 | 325 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | ≈ 8.77 |
| G80T.300.R | 300 | 350 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | ≈ 9.42 |
| G80T.350.R | 350 | 400 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | ≈ 10.07 |
| G80T.400.R | 400 | 450 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | ≈ 10.72 |
Pivoting/Locking
| Bi[mm] | Part No.
MFB pivoting |
Part No.
MFB locking |
A[mm] | B[mm] |
| 100 | G800T.100.*.12* | G801T.100.*.12* | 128 | 150 |
| 125 | G800T.125.*.12* | G801T.125.*.12* | 153 | 175 |
| 150 | G800T.150.*.12* | G801T.150.*.12* | 178 | 200 |
| 175 | G800T.175.*.12* | G801T.175.*.12* | 203 | 225 |
| 200 | G800T.200.*.12* | G801T.200.*.12* | 228 | 250 |
| 250 | G800T.250.*.12* | G801T.250.*.12* | 278 | 300 |
| 300 | G800T.300.*.12* | G801T.300.*.12* | 328 | 350 |
| 350 | G800T.350.*.12* | G801T.350.*.12* | 378 | 400 |
| 400 | G800T.400.*.12* | G801T.400.*.12* | 428 | 450 |
■ Recommended for unsupported, vertical hanging and standing applications
■ Can be fixed from the bottom and top positions
■ Optional integrated C-rails for installing cable clamps and tiewrap plates
For the complete Part NO. of MFB mounting brackets, please specify index 1 or 2 into：
1 = Links for odd
2 = Links for even
To indicate the installation position, please add index A1-A4 To complete the mounting brackets code：
Default installation position：A1
Cable chain length LK = S/2+K
|
R[mm] |
H[mm] |
D[mm] |
K[mm] |
| 200 | 508 | 421 | 855 |
| 250 | 608 | 471 | 1010 |
| 300 | 708 | 521 | 1165 |
| 350 | 808 | 571 | 1325 |
| 400 | 908 | 621 | 1480 |
| 450 | 1008 | 671 | 1640 |
| 500 | 1108 | 721 | 1795 |
| 600 | 1308 | 821 | 2110 |
Cable chain length LK = S/2+K1
|
R[mm] |
H1[mm] |
D1[mm] |
K1[mm] |
ΔC[mm] |
nR
|
| 200 | 324 | 650 | 999 | 275 | 2 |
| 250 | 324 | 840 | 1332 | 415 | 2 |
| 300 | 324 | 1020 | 1665 | 550 | 3 |
| 350 | 324 | 1290 | 1998 | 760 | 3 |
| 400 | 324 | 1550 | 2442 | 980 | 3 |
| 450 | 324 | 1630 | 2664 | 1010 | 4 |
| 500 | 324 | 1890 | 3108 | 1220 | 4 |
| 600 | 324 | 2530 | 3996 | 1760 | 4 |
| Unsupported length |
≤ 6.0 m |
| Gliding length |
≤ 350 m |
| Vertical hanging |
≤ 100 m |
| Vertical standing |
≤ 6.0 m |
| Side-mounted unsupported | ≤ 3.0 m |
| Speed/Acceleration FLG |
≤ 10 [m/s] / 50 [m/s² ] |
| Speed/Acceleration FLB |
≤ 3 [m/s] / 6 [m/s² ] |
| Gliding speed /Acceleration | ≤ 5 [m/s] / 30 [m/s² ] |
Closed | Openable along outer radius
Closed | Swarf protectio
Open | Crossbars every link
Open | Crossbars every 2nd link
