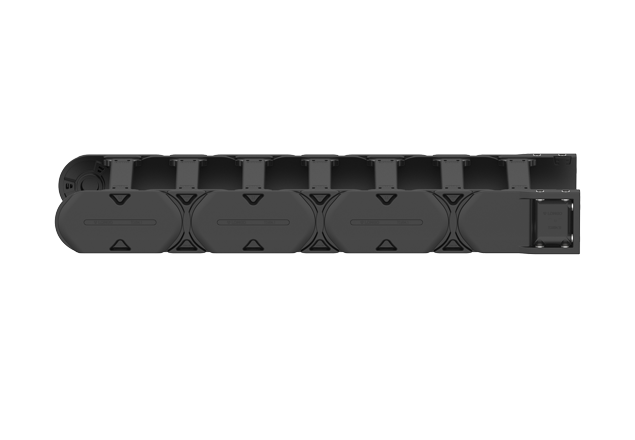

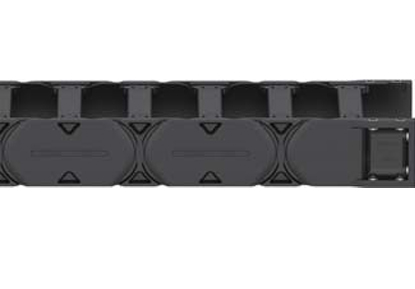

TC60M Series

TriCross M Cable chain series

PARAMETER

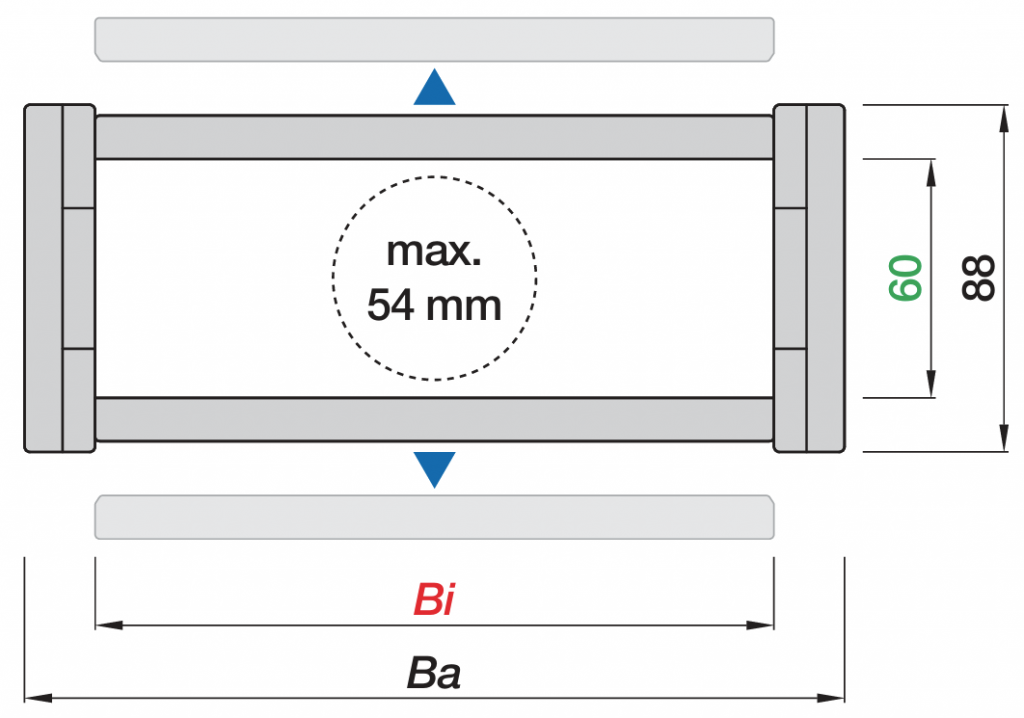

Inner height hi ：60 mm

Inner widths Bi ： 75 - 500 mm

Bending radii R ： 135 - 500 mm

Pitch P ：91 mm

CONTACT US

Email :clairehui@longo-tech.com

Tel : +86-18602248947

WhatsApp : +86-18602248947

Part No. Bi Ba R Weight
Cable chain [mm] [mm] [mm] [kg/m]
TC60M.075.R 75 101 135|150|175|200|250|300|350|400|450|500 ≈3.02
TC60M.100.R 100 126 135|150|175|200|250|300|350|400|450|500 ≈3.20
TC60M.125.R 125 151 135|150|175|200|250|300|350|400|450|500 ≈3.37
TC60M.150.R 150 176 135|150|175|200|250|300|350|400|450|500 ≈3.55
TC60M.175.R 175 201 135|150|175|200|250|300|350|400|450|500 ≈ 3.73
TC60M.200.R 200 226 135|150|175|200|250|300|350|400|450|500 ≈ 3.91
TC60M.225.R 225 251 135|150|175|200|250|300|350|400|450|500 ≈4.10
TC60M.250.R 250 276 135|150|175|200|250|300|350|400|450|500 ≈ 4.27
TC60M.275.R 275 301 135|150|175|200|250|300|350|400|450|500 ≈ 4.46
TC60M.300.R 300 326 135|150|175|200|250|300|350|400|450|500 ≈4.64
TC60M.325.R 325 351 135|150|175|200|250|300|350|400|450|500 ≈ 4.82
TC60M.350.R 350 376 135|150|175|200|250|300|350|400|450|500 ≈4.98
TC60M.362.R 362 388 135|150|175|200|250|300|350|400|450|500 ≈5.06
TC60M.400.R 400 426 135|150|175|200|250|300|350|400|450|500 ≈5.34
TC60M.450.R* 450 476 135|150|175|200|250|300|350|400|450|500 ≈5.69
TC60M.500.R* 500 526 135|150|175|200|250|300|350|400|450|500 ≈6.05

MFB mounting brackets | Open

Locking / Pivoting I / II

Bi Part No. Part No. Part No. A B
[mm] MFB Locking MFB Pivoting I M FB Pivoting  II [mm] [mm]
75 TC600M.075.*.12 TC600M.075.*.34 TC600M.075.*.56 95 111
100 TC600M.100.*.12 TC600M.100.*.34 TC600M.100.*.56 120 136
125 TC600M.125.*.12 TC600M.125.*.34 TC600M.125.*.56 145 161
150 TC600M.150.*.12 TC600M.150.*.34 TC600M.150.*.56 170 186
175 TC600M.175.*.12 TC600M.175.*.34 TC600M.175.*.56 195 211
200 TC600M.200.*.12 TC600M.200.*.34 TC600M.200.*.56 220 236
225 TC600M.225.*.12 TC600M.225.*.34 TC600M.225.*.56 245 261
250 TC600M.250.*.12 TC600M.250.*.34 TC600M.250.*.56 270 286
275 TC600M.275.*.12 TC600M.275.*.34 TC600M.275.*.56 295 311
300 TC600M.300.*.12 TC600M.300.*.34 TC600M.300.*.56 320 336
325 TC600M.325.*.12 TC600M.325.*.34 TC600M.325.*.56 345 361
350 TC600M.350.*.12 TC600M.350.*.34 TC600M.350.*.56 370 386
362 TC600M.362.*.12 TC600M.362.*.34 TC600M.362.*.56 382 398
400 TC600M.400.*.12 TC600M.400.*.34 TC600M.400.*.56 420 436
450 TC600M.450.*.12* TC600M.450.*.34* TC600M.450.*.56* 470 486
500 TC600M.500.*.12* TC600M.500.*.34* TC600M.500.x.56* 520 536

■ Recommended for unsupported, vertical hanging and standing applications

■ Can be fixed from the bottom and top positions

■ Optional integrated C-rails for installing cable clamps and tiewrap plates

To indicate the installation position, please add index A1-A4 To complete the mounting brackets code：

Default installation position：A1

Unsupported applications | Short travels

Cable chain length LK = S/2+K

R [mm] H [mm] Hz [mm] D [mm] K [mm]
135* 358 408 316 610
150 388 438 331 655
175 438 488 356 735
200 488 538 381 815
250 588 638 431 970
300 688 738 481 1125
350 788 838 531 1285
400 888 938 581 1440
450 988 1038 631 1600
500 1088 1138 681 1755



Gliding applications | Long travels

R [ mm] H1[mm] D1[mm] K1[mm] △C [mm] nR
135* 270 316 610 – –
150 264 500 819 210 2
175 264 560 910 240 2
200 264 690 1092 335 2
250 264 850 1365 455 3
300 264 1080 1729 630 3
350 264 1390 2184 890 3
400 264 1460 2457 920 4
450 264 1770 2912 1180 4
500 264 2090 3276 1450 4

Unsupported applications | Short travels

Unsupported length ≤ 5.0 m
Gliding length ≤ 300 m
Vertical hanging ≤ 80 m
Vertical standing ≤ 5.0 m
Side-mounted unsupported ≤ 1.5 m
Speed/Acceleration FLG ≤ 10 [m/s] / 50 [m/s² ]
Speed/Acceleration FLB ≤ 2 [m/s] / 4 [m/s² ]
Gliding speed /Acceleration ≤ 5 [m/s] / 30 [m/s² ]
