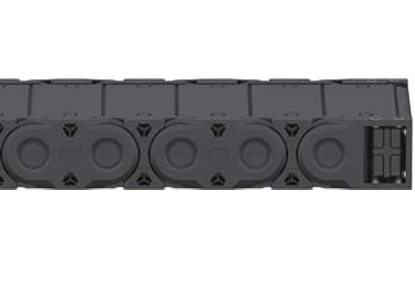

GS80T Series

GeMotion Cable chain series

PARAMETER

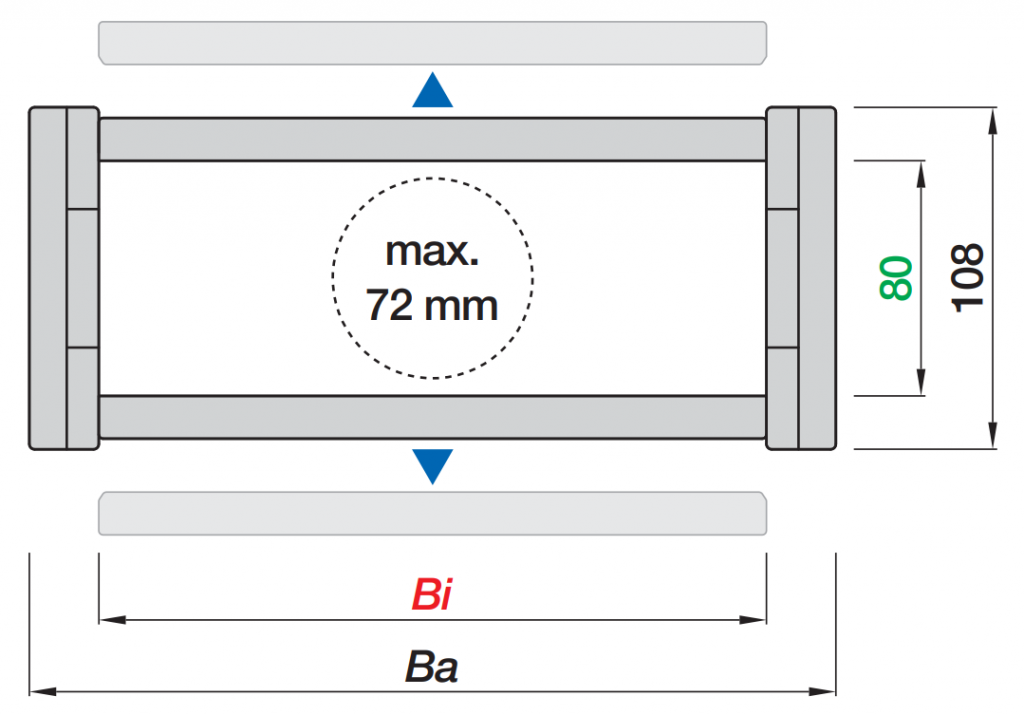

Inner height hi ：80 mm

Inner widths Bi ： 100 - 400 mm

Bending radii R ： 200 - 600 mm

Pitch P ：91 mm

CONTACT US

Email :clairehui@longo-tech.com

Tel : +86-18602248947

WhatsApp : +86-18602248947

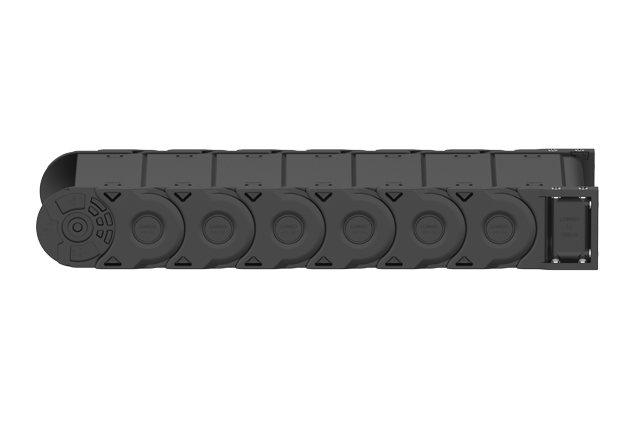

Part No. Bi Ba R Weight
Cable chain [mm] [mm] [mm] [kg/m]
GS80T.100.R* 100 130 -|-|200|250|300|350|400|450|500|600 ≈ 4.99
GS80T.125.R 125 155 -|-|200|250|300|350|400|450|500|600 ≈5.33
GS80T.150.R 150 180 -|-|200|250|300|350|400|450|500|600 ≈5.69
GS80T.175.R 175 205 -|-|200|250|300|350|400|450|500|600 ≈6.03
GS80T.200.R 200 230 -|-|200|250|300|350|400|450|500|600 ≈6.39
GS80T.250.R 250 280 -|-|200|250|300|350|400|450|500|600 ≈7.07
GS80T.300.R 300 330 -|-|200|250|300|350|400|450|500|600 ≈7.77
GS80T.350.R 350 380 -|-|200|250|300|350|400|450|500|600 ≈8.45
GS80T.400.R* 400 430 -|-|200|250|300|350|400|450|500|600 ≈9.15

MFB mounting brackets | Closed

PivotingI/II

Bi Part No. Part No. A B
[mm] MFB PivotingI MFB Pivoting II [mm] [mm]
100 GS800T.100.45* GS800T.100.65* 120 137
125 GS800T.125.45 GS800T.125.65 145 162
150 GS800T.150.45 GS800T.150.65 170 187
175 GS800T.175.45 GS800T.175.65 195 212
200 GS800T.200.45 GS800T.200.65 220 237
250 GS800T.250.45 GS800T.250.65 270 287
300 GS800T.300.45 GS800T.300.65 320 337
350 GS800T.350.45 GS800T.350.65 370 387
400 GS800T.400.45* GS800T.400.65* 420 437

■ Recommended for unsupported, vertical hanging and standing applications

■ Can be fixed from the bottom and top positions

■ Optional integrated C-rails for installing cable clamps and tiewrap plates

To indicate the installation position, please add index A1-A4 To complete the mounting brackets code：

Default installation position：A1

Unsupported applications | Short travels

Cable chain length LK = S/2+K

R [mm] H [mm] Hz [mm] D [mm] K [mm]
150* 408 458 341 655
175* 458 508 366 735
200 508 558 391 815
250 608 658 441 970
300 708 758 491 1125
350 808 858 541 1285
400 908 958 591 1440
450 1008 1058 641 1600
500 1108 1158 691 1755
600 1308 1358 791 2070

Gliding applications | Long travels

R [mm] H1[mm] D1[mm] K1[mm] Δ C [mm] nR
150* 300 341 655 – –
175* 350 366 735 – –
200 324 590 1001 245 2
250 324 845 1365 450 3
300 324 1080 1729 635 3
350 324 1395 2184 900 3
400 324 1475 2457 930 4
450 324 1785 2821 1190 4
500 324 2100 3276 1455 4
600 324 2400 3913 1655 5





Unsupported applications | Short travels

Unsupported length ≤ 5.0m
Gliding length ≤ 350 m
Vertical hanging ≤ 100 m
Vertical standing ≤ 6.0 m
Side-mounted unsupported ≤ 2.7 m
Speed/Acceleration FLG ≤ 10 [m/s] / 50 [m/s² ]
Speed/Acceleration FLB ≤ 2 [m/s] / 4 [m/s² ]
Gliding speed /Acceleration ≤ 5 [m/s] / 30 [m/s² ]
