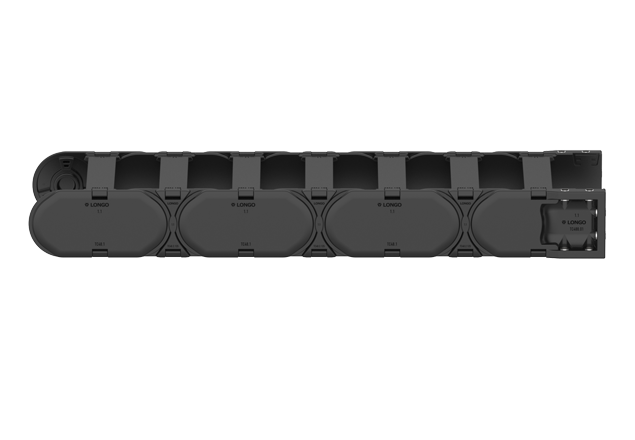

N07 Series
Open | Openable along outer radius

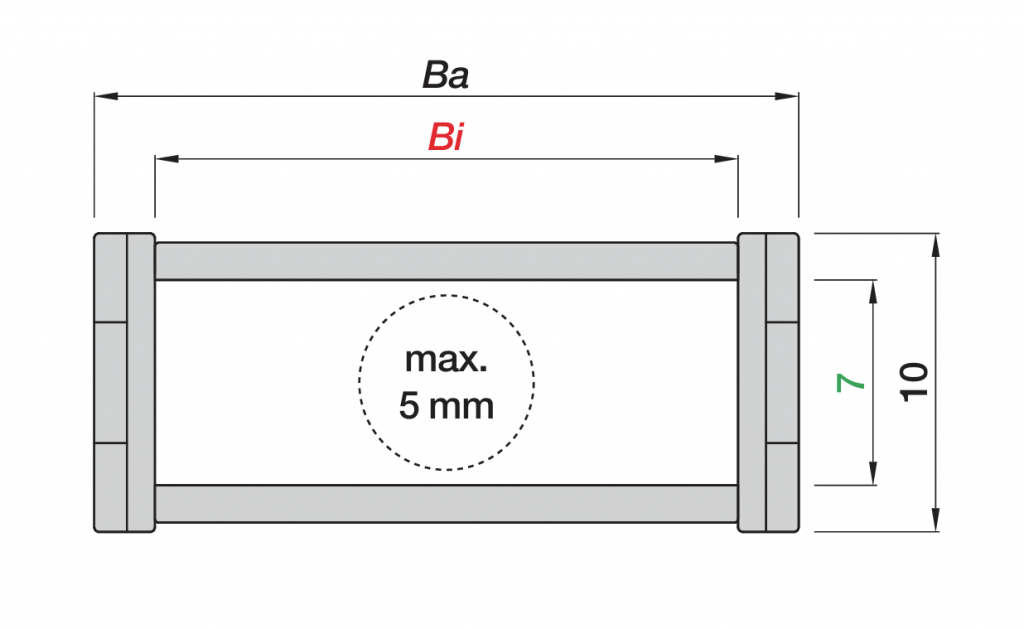

- Inner height hi ：7mm
- Inner widths Bi ： 7 - 30 mm
- Bending radii R ： 015 - 048 mm
- Pitch P ：13mm
Inner height hi ：7mm
Inner widths Bi ： 7 - 30 mm
Bending radii R ： 015 - 048 mm
Pitch P ：13mm
| Part No. | Bi[mm] | Ba[mm] | R[mm] | Weight[kg/m] |
| N07.07.R | 7 | 12 | 015|018|028|038|048 | ≈0.07 |
| N07.10.R | 10 | 15 | 015|018|028|038|048 | ≈0.08 |
| N07.16.R | 16 | 21 | 015|018|028|038|048 | ≈0.09 |
| N07.20.R | 20 | 25 | 015|018|028|038|048 | ≈0.10 |
| N07.30.R | 30 | 35 | 015|018|028|038|048 | ≈0.11 |

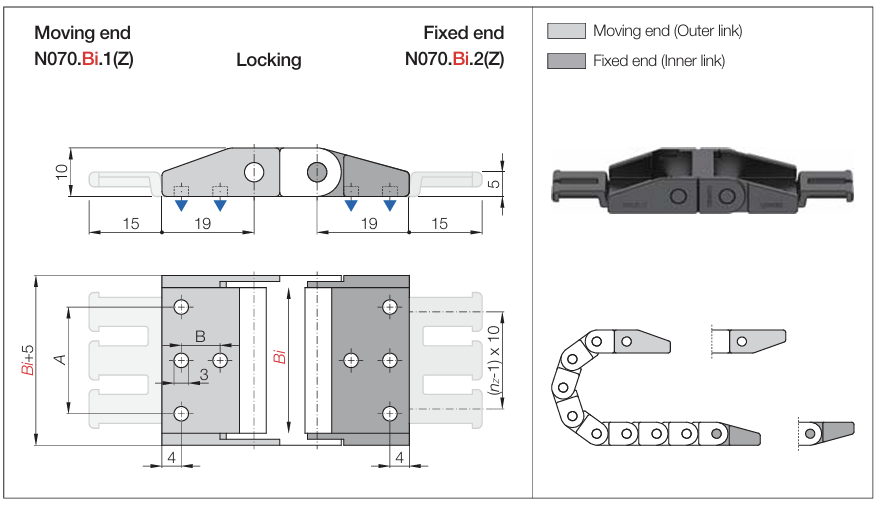

Locking
| Bi[mm] | ZB mounting brackets Part No.
With tiewrap plates |
ZB mounting brackets Part No.
Without tiewrap plates |
A[mm] | B[mm] | Number of teeth nz |
| 7 | N070.07.12.Z | N070.07.12 | – | 8 | 1 |
| 10 | N070.10.12.Z | N070.10.12 | – | 8 | 1 |
| 16 | N070.16.12.Z | N070.16.12 | – | 8 | 2 |
| 20 | N070.20.12.Z | N070.20.12 | – | 8 | 2 |
| 30 | N070.30.12.Z | N070.30.12 | 22 | – | 3 |

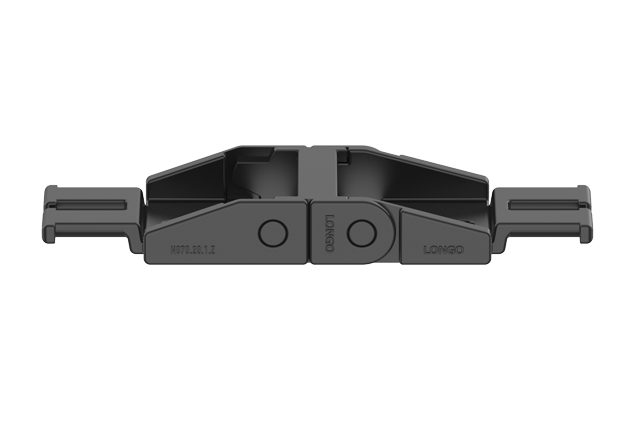

a. ZB Locking mounting brackets : Recommended for unsupported, vertical hanging, and standing applications
b. Can be fixed from the bottom
c. Optional tiewrap plates for securing cables
To indicate the installation position, please add index A1-A4 To complete the mounting brackets code：
Default installation position：A1
Cable chain length LK = S/2+K
| R[mm] | H[mm] | Hz[mm] | D[mm] | K[mm] |
| 015 | 40 | 45 | 40 | 80 |
| 018 | 46 | 51 | 43 | 85 |
| 028 | 66 | 71 | 53 | 120 |
| 038 | 86 | 91 | 63 | 150 |
| 048 | 106 | 111 | 73 | 180 |

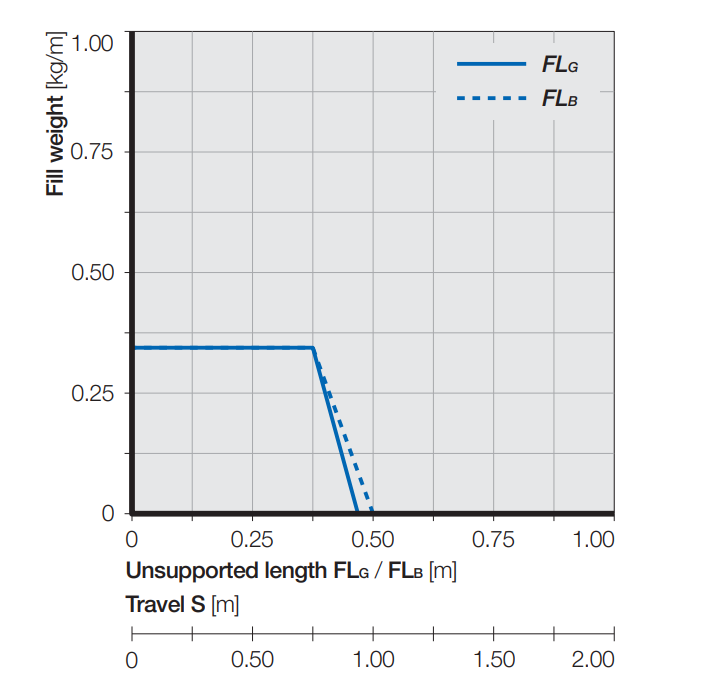

| Unsupported length | ≤ 0.5 m |
| Gliding length | – |
| Vertical hanging | ≤ 3 m |
| Vertical standing | ≤ 1 m |
| Side-mounted unsupported | ≤ 0.2 m |
| Speed/Acceleration FLG | ≤ 10 [m/s] / 50 [m/s² ] |
| Speed/Acceleration FLB | ≤ 2 [m/s] / 4 [m/s² ] |
| Gliding speed /Acceleration | – |

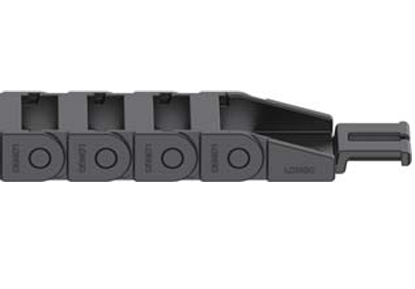

Open | Openable along outer radius
