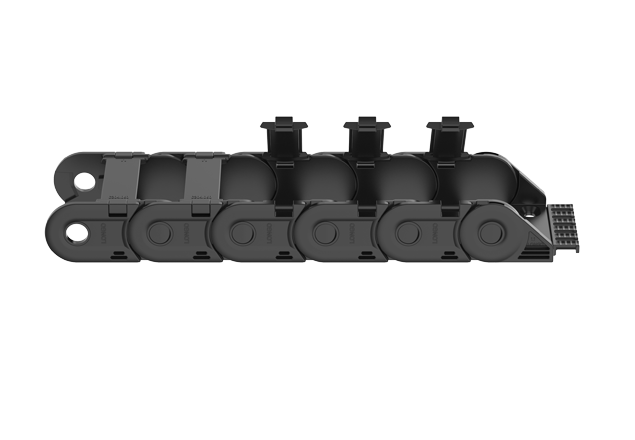

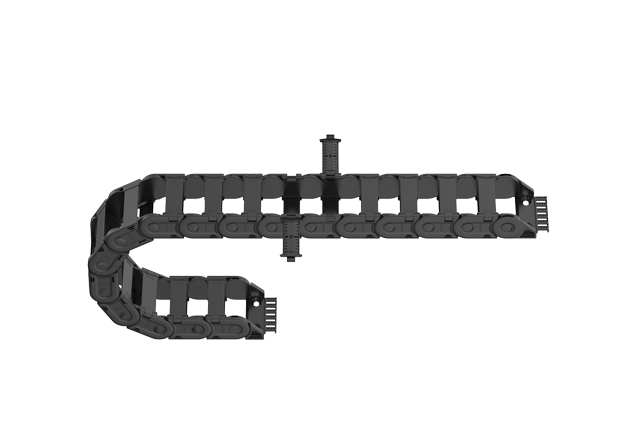

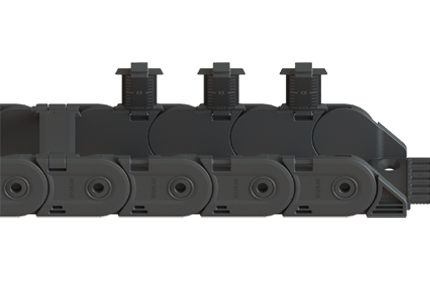

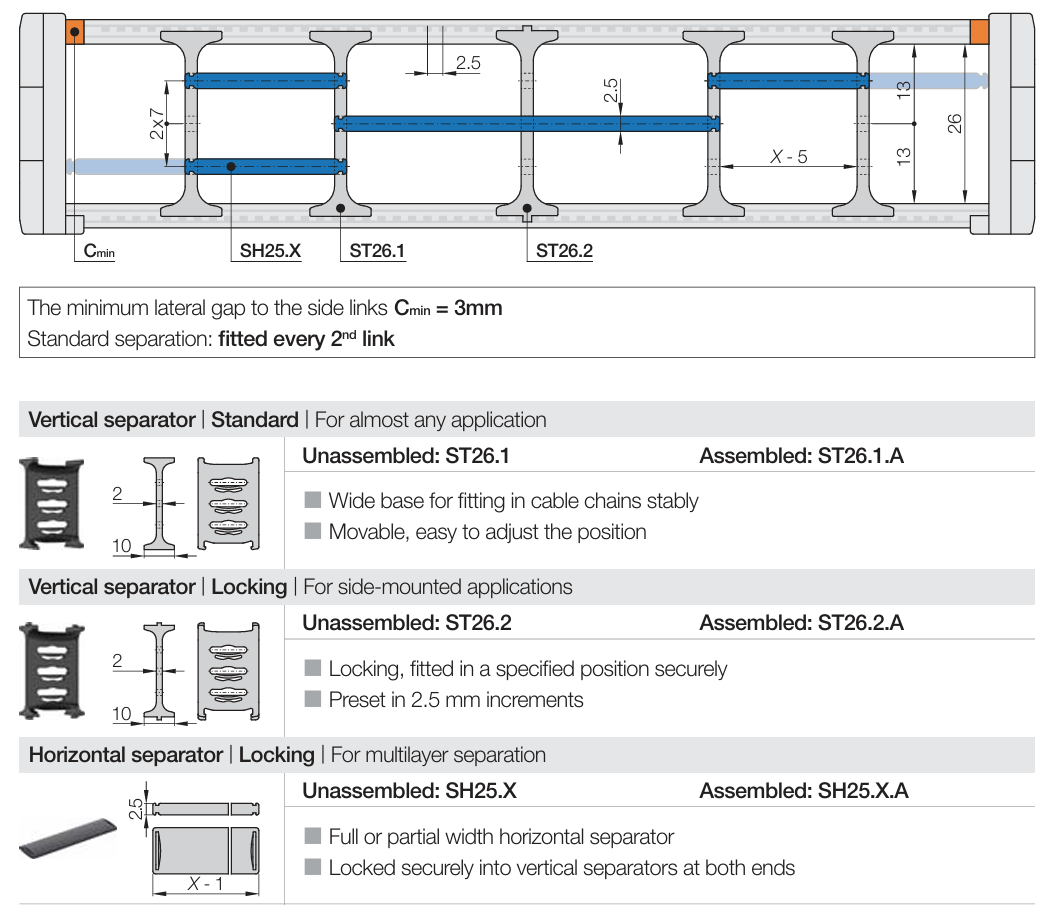

E26 Series

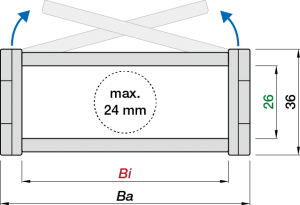

Open | Openable along outer radius
- Inner height hi ：26 mm
- Inner widths Bi ： 25 - 125 mm
- Bending radii R ： 048 - 250 mm
- Pitch P ：46 mm
Inner height hi ：26 mm
Inner widths Bi ： 25 - 125 mm
Bending radii R ： 048 - 250 mm
Pitch P ：46 mm
|
Part No. |
Bi[mm] |
Ba[mm] |
R[mm] |
Weight[kg/m] |
| E26.040.R | 40 | 55 | 048 | 055 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | ≈ 0.80 |
| E26.060.R | 60 | 75 | 048 | 055 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | ≈ 0.88 |
| E26.080.R | 80 | 95 | 048 | 055 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | ≈ 0.95 |
| E26.100.R | 100 | 115 | 048 | 055 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | ≈ 1.03 |
 ED26—Our E26 cable chain for elastic modules |
||||
| ED26.040.R | 40 | 55 | 048 | 055 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | ≈ 0.80 |
| ED26.060.R | 60 | 75 | 048 | 055 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | ≈ 0.88 |
| ED26.080.R | 80 | 95 | 048 | 055 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | ≈ 0.95 |
| ED26.100.R | 100 | 115 | 048 | 055 | 075 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | ≈ 1.03 |

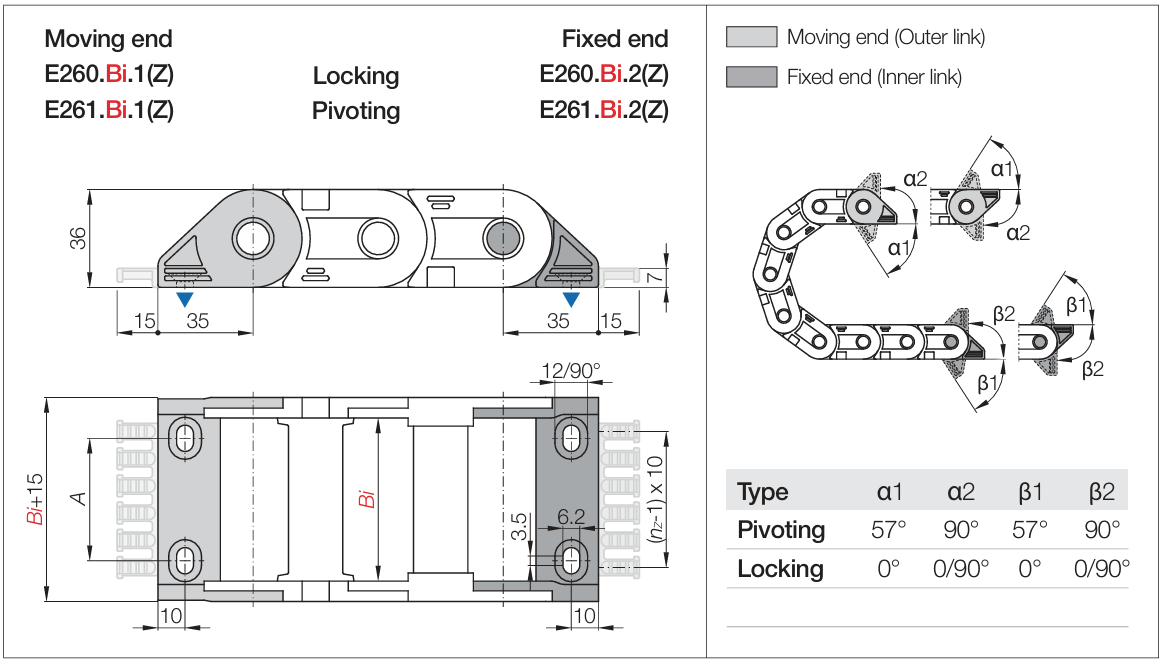

Locking/Pivoting
| Bi [mm] | Part No. | Pivoting | Part No. | Locking | A [mm] | Number of teeth nz | ||
| with tiewrap plates | without tiewrap plates | with tiewrap plates | without tiewrap plates | |||
| 25 | E260.025.12.Z* | E260.025.12* | E261.025.12.Z* | E261.025.12* | 12 | 3 |
| 40 | E260.040.12.Z | E260.040.12 | E261.040.12.Z | E261.040.12 | 25 | 4 |
| 60 | E260.060.12.Z | E260.060.12 | E261.060.12.Z | E261.060.12 | 45 | 6 |
| 80 | E260.080.12.Z | E260.080.12 | E261.080.12.Z | E261.080.12 | 65 | 8 |
| 100 | E260.100.12.Z | E260.100.12 | E261.100.12.Z | E261.100.12 | 85 | 10 |
a. ZB Locking mounting brackets: Recommended for unsupported, vertical hanging, and standing applications
b. ZB Pivoting mounting brackets: Recommended for gliding application
c. Can be fixed from the bottom
d. Optional tiewrap plates for securing cables
To indicate the installation position, please add index A1-A4 To complete the mounting brackets code ：
Default installation position：A1

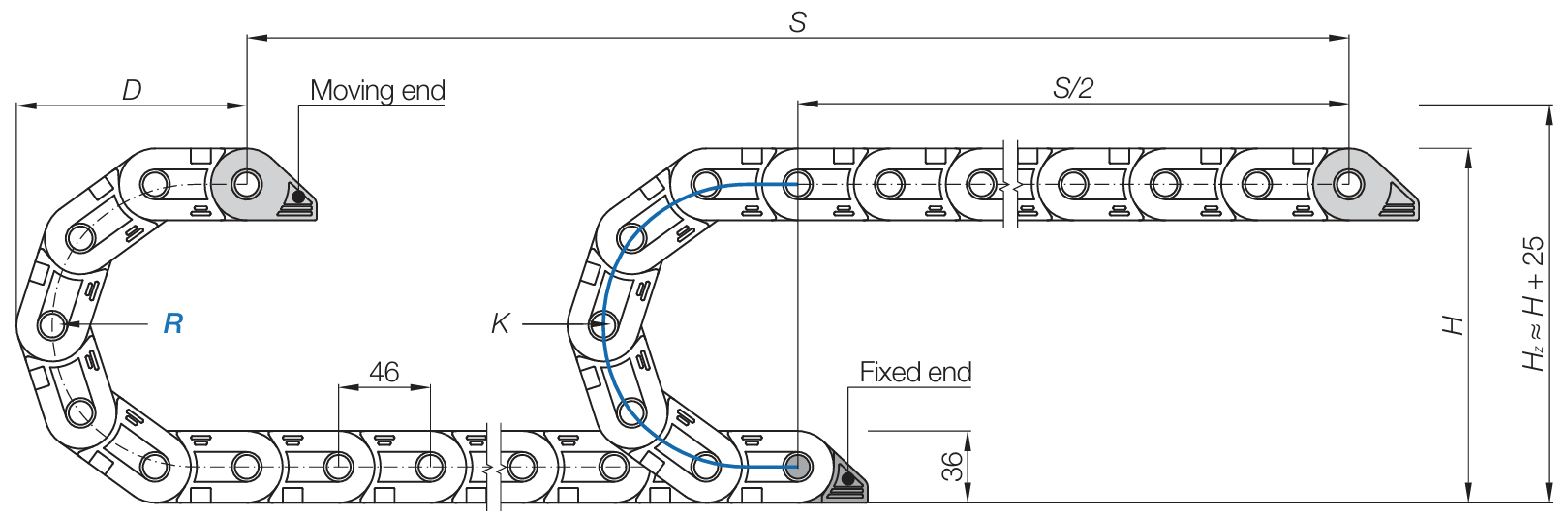

Cable chain length LK = S/2+K
|
R [mm] |
H [mm] |
D [mm] |
K [mm] |
| 048 | 132 | 135 | 245 |
| 055 | 146 | 142 | 265 |
| 075 | 186 | 162 | 330 |
| 100 | 236 | 187 | 410 |
| 125 | 286 | 212 | 485 |
| 150 | 336 | 237 | 565 |
| 175 | 386 | 262 | 645 |
| 200 | 436 | 287 | 725 |
| 225 | 486 | 312 | 800 |
| 250 | 536 | 337 | 880 |

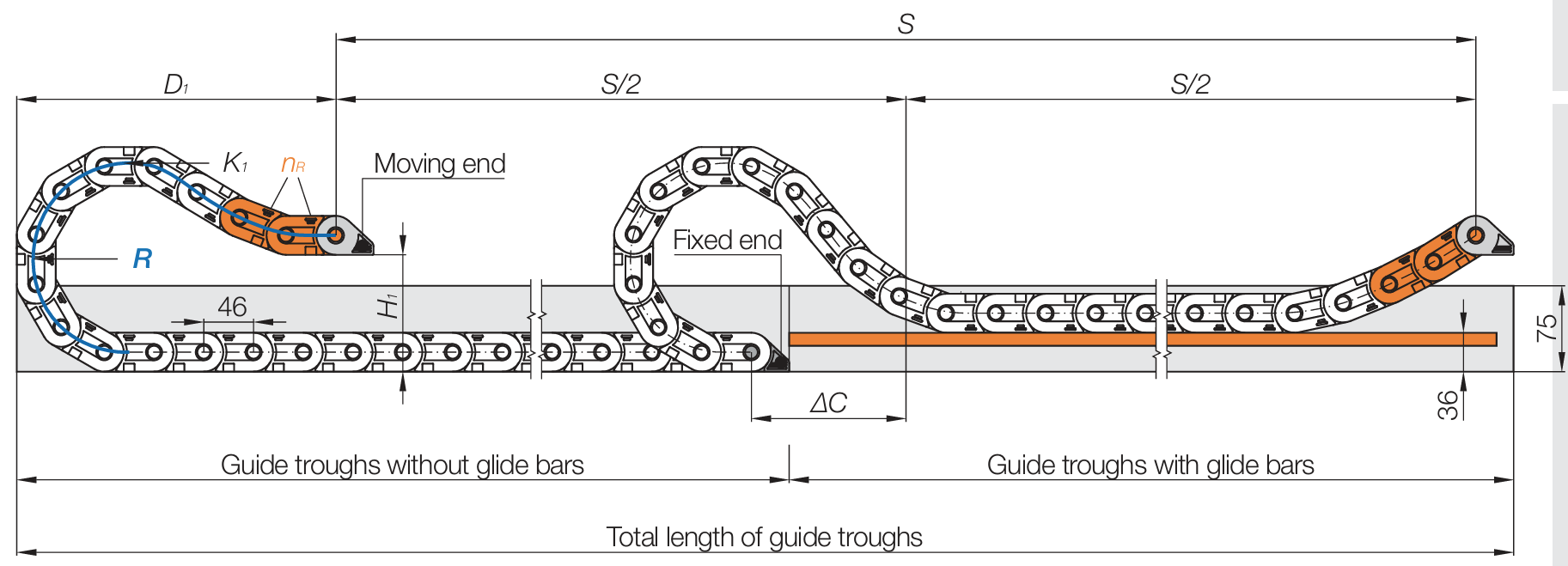

Cable chain length LK = S/2+K1
|
R [mm] |
H1 [mm] |
D1 [mm] |
K1 [mm] |
ΔC [mm] |
nR [1]
|
| 048 | 96 | 135 | 245 | — | — |
| 055 | 10 | 142 | 265 | — | — |
| 075 | 108 | 260 | 414 | 115 | 2 |
| 100 | 108 | 380 | 598 | 210 | 2 |
| 125 | 108 | 425 | 736 | 230 | 3 |
| 150 | 108 | 580 | 920 | 360 | 3 |
| 175 | 108 | 730 | 1150 | 490 | 3 |
| 200 | 108 | 770 | 1242 | 500 | 4 |
| 225 | 108 | 930 | 1472 | 630 | 4 |
| 250 | 108 | 1090 | 1702 | 770 | 4 |

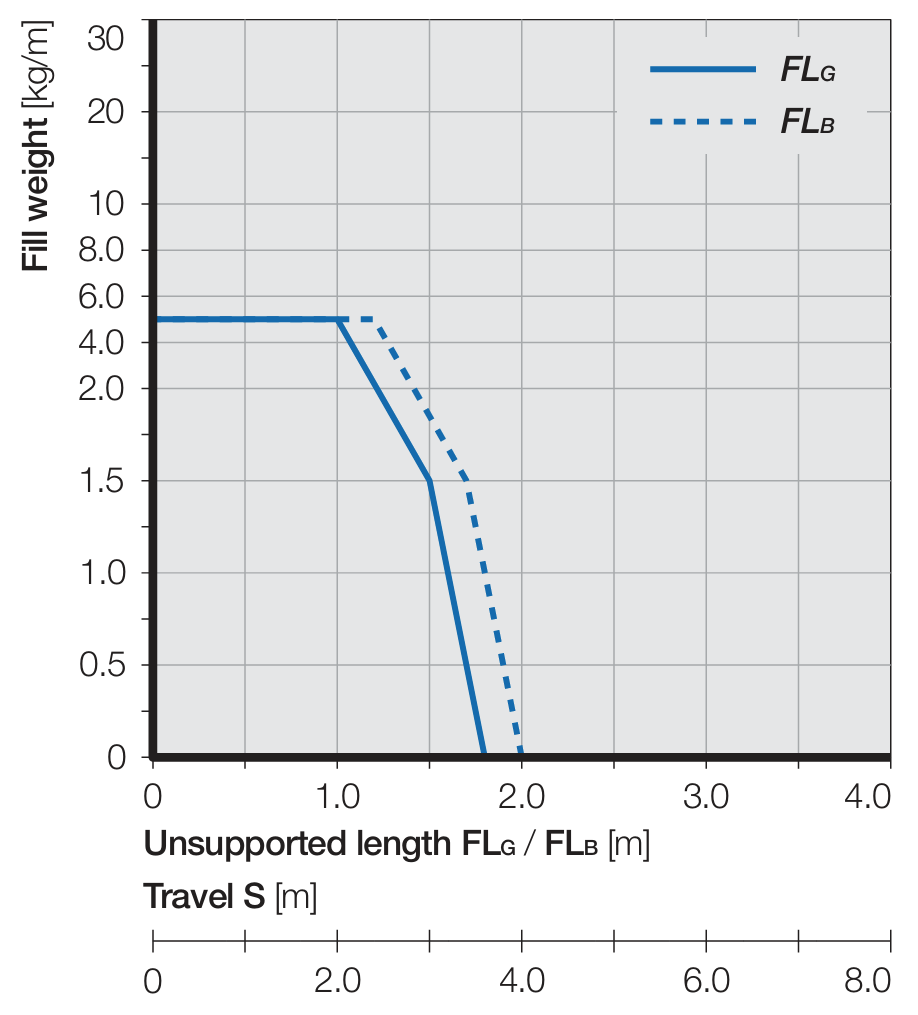

| Unsupported length |
≤ 2.0 m |
| Gliding length |
≤ 100 m |
| Vertical hanging |
≤ 40 m |
| Vertical standing |
≤ 2.5 m |
| Side-mounted unsupported | ≤ 1.0 m |
| Speed/Acceleration FLG |
≤ 10 [m/s] / 50 [m/s² ] |
| Speed/Acceleration FLB |
≤ 2 [m/s] / 4 [m/s² ] |
| Gliding speed /Acceleration | ≤ 4 [m/s] / 25 [m/s² ] |
Open | Openable along outer radius
Open | Openable along inner radius
Open | Openable along outer radius
Open | Openable along inner radius
